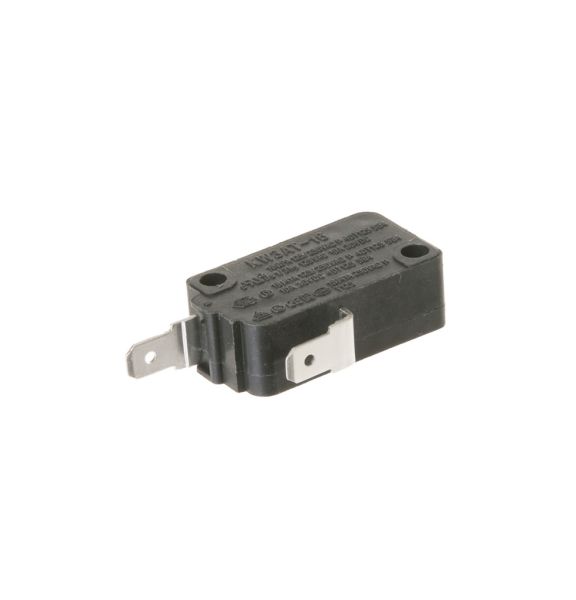

General Electric WB24X10205 Range Switch Micro Monitor

Special Price $49.95 Regular Price $68.00
In stock
Available Quantity:   134
SKU
WB24X10205

Product Description

The General Electric WB24X10205 Range Switch Micro Monitor regulates safety operations by monitoring the position of the appliance door and controlling electrical operation, accordingly. It operates by sensing the door's opening and, closing and, cutting off power when required, ensuring that it does not operate under unsafe conditions. This assists in the correct system response, and safe use in operation. It is mounted on the door switch assembly and, has a connection to the control circuit, which provides proper signal transfer and, synchronized communication with the appliance system.
Switch,
Manufacturer
✓ This Product Replaces: WB24X10147
https://www.hnkparts.com/media/catalog/product/w/b/wb24x10205_general-electric_hnkparts.png

This Part Fits the Following Models (95)

GE PVM9005EJ5ES Microwave/Hood Combo GE PVM9005FM3DS Microwave/Hood Combo GE PVM9005BL3TS Microwave/Hood Combo GE CVM721M2N1S5 Microwave/Hood Combo GE CVM919M2N1S5 Microwave/Hood Combo GE JVM3160EF4ES Microwave GE JVM3160RF1SS Microwave GE JVM3160EF5ES Microwave GE JVM3160RF2SS Microwave GE JVM3160RF3SS Microwave Or Advantium GE JVM3160RF6SS Microwave GE JVM3160RF5SS Microwave Or Advantium GE JVM3160RF4SS Microwave Or Advantium GE JNM3160DF1BB Microwave GE JNM3160DF1WW Microwave
Showing 1-15 of 95
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB24X10205
OEM Part Number: WB24X10205
Product Description: Switch Micro Monitor

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB24X10205 Range Switch Micro Monitor
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The appliance is disconnected from the electrical outlet and the gas supply is turned off.

Step 2: The metal panel situated at the front of the appliance is taken off.

Step 3: The GE WB24X10205 switch micro monitor is identified.

Step 4: The mounting screws are extracted from the switch utilizing a Phillips screwdriver.

Step 5: The wiring harness is detached from the switch.

Step 6: The new switch is placed by reversing the disassembly steps, with the wiring harness attached to the switch first.

Step 7: The switch is fastened with the mounting screws and the metal panel is reinstalled.

Step 8: The appliance is reconnected to the electrical outlet and the gas supply is reactivated.

Remember that these directions are served as general guidance and should always be followed alongside the manufacturer's manual, if available.
