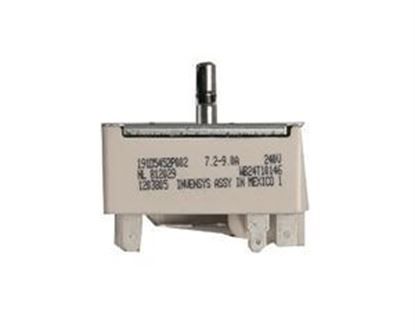

General Electric WB24T10146 Range Control Surface Burner Switch

Special Price $21.43 Regular Price $29.92
In stock
Available Quantity:   102
SKU
WB24T10146

Product Description

The General Electric WB24T10146 Range Control Surface Burner Switch is an electrical power control for a heating coil and the internal contact is adjusted as the knob is turned. It circulates current based on the amount of heat selected, providing a steady reaction to temperature in the cooking process. The switch is mounted at the back of the control panel, and is connected to existing wiring, so there is no trouble with transitioning to one mode or the other. It provides reliable modulation during use and assists in maintaining the controlled cooling operation.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb24t10146_general-electric_hnkparts.jpg

This Part Fits the Following Models (518)

Amana MP1B Table Top Microwave GE PB980SJ8SS Free Standing Electric Range GE PB930SL5SS Free Standing Electric Range GE PB910SP4SS Electric Range GE PB910TP1CC Electric Range GE PB930SL3SS Free Standing Electric Range GE PB930SF1SS Electric Range GE PB980SJ5SS Free Standing Electric Range GE PCB909DP1BB Electric Range GE PCB909DP1WW Electric Range GE PB915TT1WW Electric Range GE PB915TT2CC Electric Range GE PB915TT2WW Electric Range GE PB910TP1WW Electric Range GE PB910TP2CC Electric Range
Showing 1-15 of 518
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB24T10146
OEM Part Number: WB24T10146
Product Description: Control Surf Elem

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB24T10146 Range Control Surface Burner Switch
Your Rating
Customer Questions
What maintenance is required for the General Electric WB24T10146 Control Surface Burner Switch?

Keep the range control area clean and dry to prevent debris or moisture from affecting switch operation. Avoid excessive force when turning knobs. Periodically check for loose connections or inconsistent burner response. Always disconnect power before inspecting or replacing the switch.

What are common issues with the General Electric WB24T10146 Control Surface Burner Switch?

  • Burner not heating or only partially heating.
  • Infinite control failure causing no temperature adjustment.
  • Burner stuck on high or low setting.
  • Intermittent heating or cycling inconsistencies.
  • Electrical arcing or burnt switch contacts.

Installation Steps

Step1: Disconnect power at circuit breaker and ensure range is completely cool verify no voltage present.

Step2: Remove control panel knobs and backguard screws to access switch wiring compartment.

Step3: Label and disconnect wires from old surface burner switch carefully to avoid miswiring.

Step4: Install new switch, reconnect wires per wiring diagram, and secure mounting firmly in place.

Step5: Reassemble control panel, restore power at breaker, and test burner operation for proper heating.
