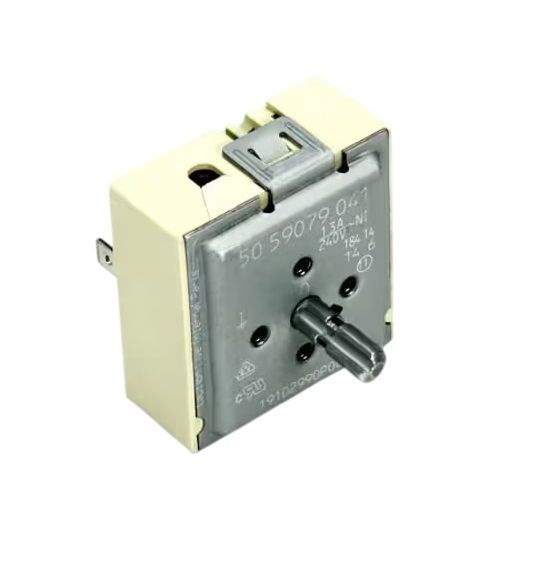

General Electric WB24T10058 Range Infinite Control Switch

Special Price $25.48 Regular Price $91.64
In stock
Available Quantity:   46
SKU
WB24T10058

Product Description

The General Electric WB24T10058 Range Infinite Control Switch manages the amount of heat produced in the surface burner of an electric appliance. It works by varying the amount of electrical current passing through the burner and the infinite switch contacts of the control knob are rotated to different levels of temperature. The switch is fitted at the back of the cooktop control panel and is attached to the range frame and connected to the wiring harness. It facilitates the stability of cooking performance, precise temperature control of the range.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb24t10058_general-electric_hnkparts.jpg

This Part Fits the Following Models (1093)

GE PCB909DP3BB Electric Range GE PCB909DP2BB Electric Range GE PCB909DP2WW Electric Range GE PCB909DP3WW Electric Range GE PCB909SP1SS Electric Range GE PCB909SP2SS Electric Range GE PCB909SP3SS Electric Range GE JP989SD2SS Electric Range GE JP989T0D2WW Electric Range GE JP989TD3WW Electric Range GE PB975SP2SS Electric Range GE PB975SP4SS Electric Range GE PB975SP5SS Electric Range GE PB975SP6SS Electric Range GE PB975DP3BB Electric Range
Showing 1-15 of 1093
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB24T10058
OEM Part Number: WB24T10058
Product Description: Infinite Control Switch

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB24T10058 Range Infinite Control Switch
Your Rating
Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Installation Steps

Step 1: Prior to commencing any tasks, the appliance's power should be ensured off by flipping the circuit breaker associated with that line. A voltage tester should be used on the switch to confirm that all power has been eliminated. Gloves and other safety equipment should be donned when handling wiring and hazardous materials.

Step 2: A screwdriver, wire cutter/stripper, and a voltmeter will be required. The appropriately sized screwdriver and the correct wire gauge that comes with the new switch should be ensured available.

Step 3: The old switch should be detached and taken out. The old wires should be carefully extracted one by one. Track of which wire corresponds to each contact point should be kept and they should be labeled diligently.

Step 4: After the old switch is removed, the new switch should be placed. It should be verified that the plastic casing and terminals are properly aligned with the wiring box. Then, each wire should be attached to the switch, ensuring that the copper wires are firmly connected to every terminal.

Step 5: The power to the appliance should be gently reinstated by turning the circuit breaker back on. It should be verified that the switch operates correctly.

Step 6: Finally, a screwdriver should be used to fasten the switch plate. The screws should be ensured tightened adequately, as this will prevent the switch from loosening.

After completing these steps, your new GE WB24T10058 Switch Infinite should be operational. Congratulations!

Please remember, these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if available.
