main product photo

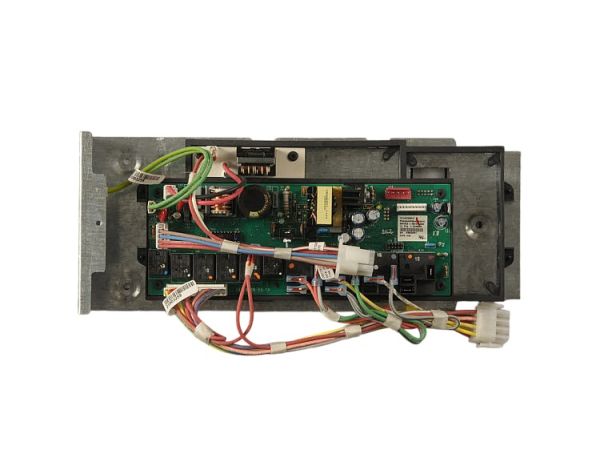

General Electric WB19K10063 Range Relay Board Assembly

Rating:
5 5 1
1 Review Add Your Review
Special Price $565.85 Regular Price $769.62
In stock
Available Quantity:   4
SKU
WB19K10063

Product Description

The General Electric WB19K10063 Range Relay Board Assembly helps in the effective distribution of power in the appliance to avoid overloading and to ensure that all the operations run smoothly. it is an essential component that is used in the management of electrical signals in the functioning of the range. This relay board functions to bridge the control board with the heating elements and enable power supply when changing temperature control. It is highly efficient reduces the possibility of faults and improves the general culinary accuracy of the appliance to function better and safely during its daily use.
Add to Wish List
Stove & Oven Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb19k10063_general-electric_hnkparts.jpg

This Part Fits the Following Models (20)

Showing 1-15 of 20
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB19K10063
OEM Part Number: WB19K10063
Product Description: Relay Board Asm

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:General Electric WB19K10063 Range Relay Board Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WB19K10063 Relay Board Assembly?

Inspect the relay board for secure mounting and proper electrical connections. Test all relays during different cooking modes. Ensure there are no signs of burnt contacts or arcing, and verify accurate operation of oven and burner functions.

What are common issues with the General Electric WB19K10063 Relay Board Assembly?

  • Burners not activating.
  • Cycles ending easrly.
  • Temperature settings ignored.
  • Control signals are not executing properly.

Installation Steps

Step1: Unplug the range to ensure no power is flowing.

Step2: Remove the back panel to access the control area.

Step3: Disconnect the old relay board carefully.

Step4: Install the new relay board in the same position.

Step5: Reconnect all wiring securely to corresponding terminals.

Step6: Replace the back panel and test the range for proper function.
