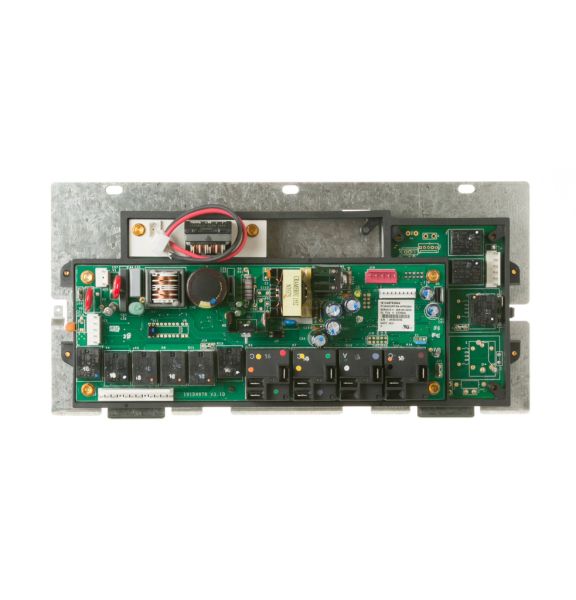

General Electric WB19K10061 Range Relay Board Assembly RT

Be the first to review this product
Special Price $436.75 Regular Price $609.87
In stock
Available Quantity:   25
SKU
WB19K10061

Product Description

The General Electric WB19K10061 Range Relay Board Assembly RT, by functioning it a receiver of signals from the control board, turns on relays to control heating elements. This is useful in controlling the power flow to the elements, to achieve the desired temperature. It is an essential part of the electric ranges that is responsible for controlling and regulating different operations of the appliance. It also controls the flow of energy and heat in a precise manner to maintain a steady flow of heat to cook the food and prevent overheating or any other complications.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb19k10061_general-electric_hnkparts.png

This Part Fits the Following Models (59)

GE ZDP486NRP3SS Dual-Fuel Range GE ZDP486NRP2SS Dual-Fuel Range GE ZDP486NRP1SS Dual-Fuel Range GE ZDP486LRP2SS Dual-Fuel Range GE ZDP486LRP3SS Dual-Fuel Range GE ZDP486LDP4SS Dual-Fuel Range GE ZDP486LRP1SS Dual-Fuel Range GE ZDP486LDP1SS Dual-Fuel Range GE ZDP486LDP2SS Dual-Fuel Range GE ZDP484NGP4SS Dual Fuel Range GE ZDP484NGP3SS Dual Fuel Range GE ZDP484NGP1SS Dual Fuel Range GE ZDP484NGP2SS Dual Fuel Range GE ZDP364LDP4SS Dual Fuel Range GE ZDP364LDP6SS Dual Fuel Range
Showing 1-15 of 59
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB19K10061
OEM Part Number: WB19K10061
Product Description: Relay Board Asm Rt

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:General Electric WB19K10061 Range Relay Board Assembly RT
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WB19K10061 Relay Board Assembly?

Keep the surrounding control area clean and free from grease or debris. Wipe nearby surfaces with a dry cloth and ensure ventilation openings remain unobstructed to support consistent control response during cooking.

What are common issues with the General Electric WB19K10061 Relay Board Assembly?

  • Burners fail to activate consistently.
  • Cooking modes change without input.
  • Heating elements stop during cycles.
  • Control signals delay burner response.

Installation Steps

Step1: Turn off the power to the range at the circuit breaker.

Step2: Disconnect all wiring connectors from the old board.

Step3: Unscrew and remove the old relay board.

Step4: Install the new relay board and reconnect all wiring securely.

Step5: Reassemble panels, restore power, and test all range functions.
