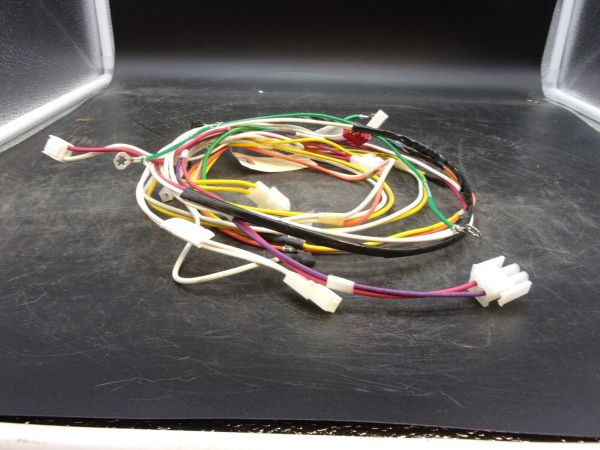

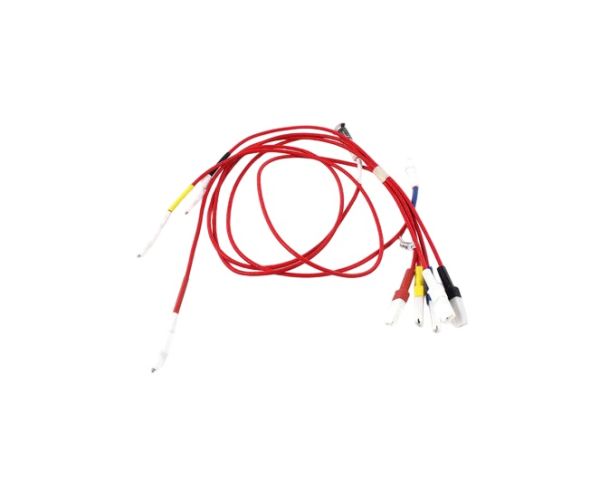

The General Electric WB18X31472 Range High Voltage Electrodes & Harness is used to generate and deliver high-voltage electrical pulses to the surface burner electrodes in an appliance. These pulses create the spark required to ignite gas at the burner when a control knob is turned to the light position. It includes both the electrode tips, and the wiring harness that routes electrical signals from the ignition module to each burner location. It is installed within the cooktop system and operates during burner startup, ensuring each gas burner receives consistent ignition signals for lighting during cooking and heating functions.
Step 1: The appliance is disconnected from the electrical outlet.
Step 2: Any screws securing the control panel are taken out.
Step 3: The control panel is extracted and the WB18X31472 electrodes & harness HV are identified.
Step 4: The wires linked to the electrodes & harness HV are detached.
Step 5: The unit is removed and it is inspected whether the electrodes & harness HV are faulty.
Step 6: If necessary, new WB18X31472 electrodes & harness HV are installed.
Step 7: The previous steps are followed in reverse to restore everything.
Step 8: The appliance is verified to ensure it operates properly.
Please be aware that these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
