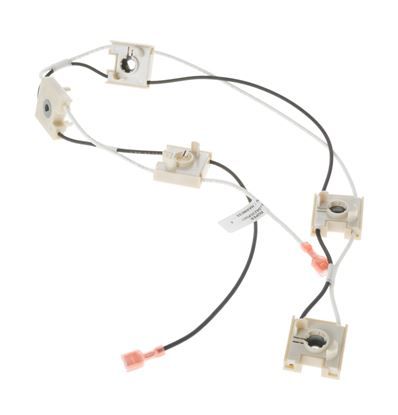

General Electric WB18T10338 Range Spark Ignition Switch & Harness

Be the first to review this product
$23.28
Out of stock
Available Quantity:   0
SKU
WB18T10338

Product Description

The General Electric WB18T10338 Range Spark Ignition Switch & Harness controls electrical signal flow that initiates burner ignition when a control knob is turned. It is positioned behind the front control panel; it connects the ignition switches with the wiring harness and spark module through dedicated electrical connections. The assembly coordinates signal transmission across multiple burner controls, allowing the ignition sequence to respond to individual switch input. Its integrated electrical configuration supports consistent ignition response and stable burner lighting during cooking cycles.
Add to Wish List
Switch,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb18t10338_general-electric_hnkparts.jpg

This Part Fits the Following Models (43)

Showing 1-15 of 43

Product Overview:

Provides the electrical switching and wiring assembly for the range's surface-burner ignition system. The General Electric WB18T10338 Range Spark Ignition Switch & Harness contains the connected ignitor switches and harness wiring used to transmit the electrical signal required for burner ignition when the control knob is placed in the ignition position. The assembly is identified as a top-burner ignitor switch harness containing five ignitor switches.

Spark Ignition Signal Control:

The individual ignitor switches provide the switching function within the surface-burner ignition circuit. When a burner control input actuates the associated switch, the switch changes the electrical state of the circuit and allows the connected ignition system to respond.

Burner Switch Harness Integration:

Connects the five surface-burner ignitor switches through a common wiring harness, maintaining the electrical connections between the individual switching points and the associated ignition circuit. The harness keeps the switch connections organized within the range's front-control ignition assembly.

Replacement Guidelines:

Replace the General Electric WB18T10338 switch and harness assembly when wiring, switches, connectors, or terminals show damage that affects electrical continuity or switching function. Burned or melted insulation, damaged connectors, corroded terminals, broken wiring, or deteriorated switch connections can indicate that replacement is needed.

Common Signs of Wear:

  • Frayed, cut, or damaged harness wiring.
  • Burned or melted wire insulation.
  • Cracked or broken connectors.
  • Corroded or damaged electrical terminals.
  • Damaged switch connections affecting electrical operation.

Equipment Compatibility:

Compatibility should be verified by comparing WB18T10338 with the complete appliance model and applicable manufacturer parts documentation. This assembly for 43 compatible models, including selected GE gas ranges such as JGP630BEK1BB, JGP962BEC2BB, JGP962KED2CC, JGP962SEC2SS, and JGP962TEC2WW. The complete appliance model and applicable parts information should be confirmed before selecting the replacement.

Technical Specifications:

Brand: General Electric
Part Number: WB18T10338
Product Type: Spark Ignition Switch & Harness
Equipment Type: Range
Reviews
Write Your Own Review
You're reviewing:General Electric WB18T10338 Range Spark Ignition Switch & Harness
Your Rating
FAQS
Customer Questions
What does GE WB18T10338 do?

GE WB18T10338 is a Range Spark Ignition Switch & Harness containing five ignitor switches connected through a wiring harness for the surface-burner ignition circuit.

How many ignitor switches are included in WB18T10338?

WB18T10338 contains five ignitor switches.

When should the WB18T10338 switch and harness be replaced?

Replacement may be needed when the wiring, switches, connectors, or terminals are damaged or when deterioration affects the electrical switching function.

How can I verify that WB18T10338 is the correct replacement?

Match WB18T10338 with the complete appliance model and applicable manufacturer parts documentation before selecting the replacement.

Which appliances are listed as compatible with WB18T10338?

WB18T10338 is listed for 43 models, including selected GE gas ranges in the JGP series. The complete appliance model should be confirmed before purchase.
