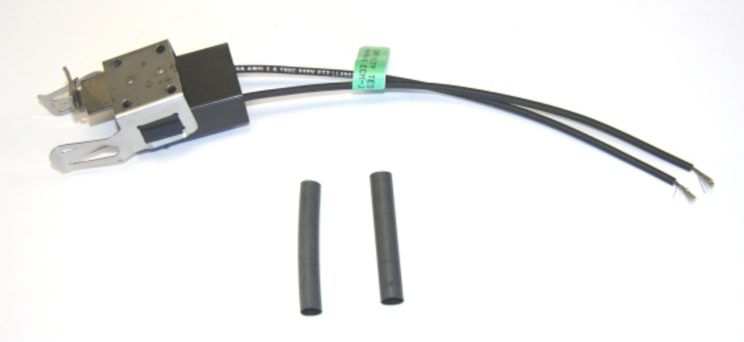

General Electric WB17X5113 Range Burner Receptacle

Special Price $8.50 Regular Price $21.45
In stock
Available Quantity:   18
SKU
WB17X5113

Product Description

The General Electric WB17X5113 Range Burner Receptacle is an electrical connection component It provides the connection point between the burner element and the appliance's electrical wiring, allowing power to be transferred to the heating element during operation. By maintaining a secure and stable electrical contact, the receptacle supports consistent heat generation and burner operation. As part of the range's electrical distribution system, it provides energy transfer, proper cooking operations, and dependable appliance operation.
Burner,
Manufacturer
✓ This Product Replaces: WB17X5094, WB2X7618, RR118, ERWB17X5113, WB02X7618, WB17X5113-25PK

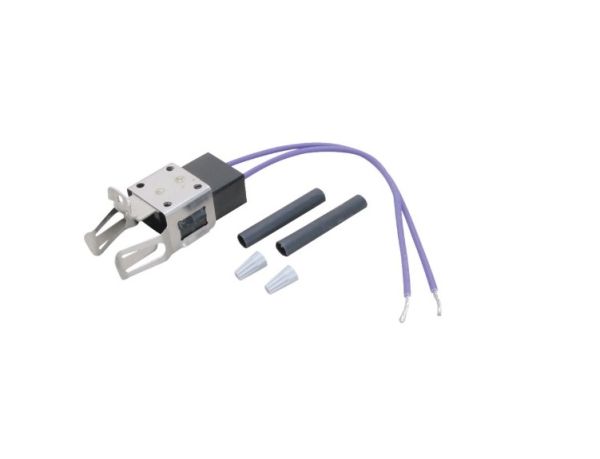

https://www.hnkparts.com/media/catalog/product/w/b/wb17x5113-72385.jpg

This Part Fits the Following Models (340)

GE RB525-R1 Electric Range GE RB525-R2 Electric Range GE JP383B9R1BC Electric Range GE JP3849R1BL Electric Range GE JP3859R1 Electric Range GE RU38B-C2 Electric Range GE RU38B-C3 Electric Range GE JHP56G-M1 Electric Range/ Microwave Combo GE JP385BD1BB Counter Unit GE JP385BV1BB Counter Unit GE JP385CV1BC Counter Unit GE JP385WD1WW Counter Unit GE JP385WV1WW Counter Unit Hotpoint RB525G-R1 Range Hotpoint RB525G-R2 Range
Showing 1-15 of 340
Manufacturer Name: General Electric
Product Number: WB17X5113
OEM Part Number: WB17X5113
Product Description: Burner Receptacle

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB17X5113 Range Burner Receptacle
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: Prior to beginning, the breaker that delivers power to the stove range oven cook top burner receptacle should be disabled.

Step 2: The power wire should be detached from the existing stove range oven cook top burner receptacle, and subsequently, the receptacle should be extracted.

Step 3: The new GE stove range oven cook top burner receptacle should be obtained and the power wires should be attached to it.

Step 4: The new receptacle should be inserted into the oven cook top burner receptacle opening and it should be fastened securely using the included screws.

Step 5: The power supply to the oven cook top burner receptacle should be activated and your installation should be verified.

Step 6: If everything functions correctly, the GE Stove Range Oven Cook Top Burner Receptacle Kit has effectively been replaced.

Please remember, these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
