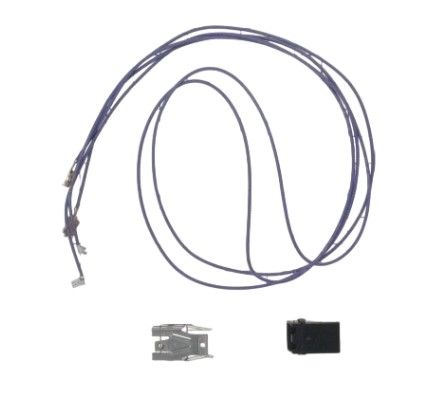

General Electric WB17X210 Range Burner Receptacle Purple Wire

$58.46
In stock
Available Quantity:   102
SKU
WB17X210

Product Description

BURNER RECEP W PURPLE WIRE
Burner, Wire,
Manufacturer
✓ This Product Replaces: WB17K5017, WB17X216, WB17X217, 291245, 293798, 293973, 293976, 299209, 304644, 304645, 306179, 318960, 326800, 330691, 343823
https://www.hnkparts.com/media/catalog/product/w/b/wb17x210-15002.jpg

This Part Fits the Following Models (511)

GE JSC26GN1 Electric Range GE JSC26GN2 Electric Range GE JSC26GP1 Electric Range GE JSC26GP2BG Electric Range GE JSC26GT1BG Electric Range GE JSP31GP3 Electric Range GE JSP31GP4 Electric Range GE JSP31WT1WW Electric Range GE JSP31WV1WW Electric Range GE JSP34AV1AA Electric Range GE JSP34AW2AA Electric Range GE JSP34AW1AA Electric Range GE LEB426GT1WH Electric Range GE JSS26BW1BB Electric Range GE JSS16P2AD Electric Range
Showing 1-15 of 511
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB17X210
OEM Part Number: WB17X210
Product Description: Burner Recep W Purple Wire

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB17X210 Range Burner Receptacle Purple Wire
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The appliance should be disconnected from the electrical outlet prior to commencing the repair.

Step 2: The GE Range Cooktop Burner Receptacle Block Kit (WB17X210) should be found.

Step 3: The screws that hold the burner frame and the existing receptacle block should be taken out.

Step 4: The old receptacle block should be extracted and disposed of.

Step 5: The wires from the old receptacle block should be gently unfastened.

Step 6: A pair of pliers should be used to remove the wires from the burner frame.

Step 7: The wires should be trimmed to the necessary length with wire cutters and approximately one inch of insulation should be removed from both ends.

Step 8: The new GE Range Cooktop Burner Receptacle Block Kit (WB17X210) should be connected by inserting the stripped wire ends into the terminal block.

Step 9: The new receptacle block should be fastened using the screws provided.

Step 10: The burner frame should be reattached with the screws that were previously removed.

Step 11: Your appliance should be reconnected and it should be verified that all burners operate correctly.

Well done! The GE Range Cooktop Burner Receptacle Block Kit (WB17X210) has now been successfully replaced.

Please note that these guidelines are intended for general assistance and should always be utilized alongside the manufacturer's manual, if accessible.
