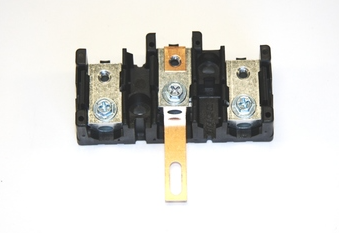

General Electric WB17T10011 Range Terminal Block Assembly

Special Price $50.86 Regular Price $69.26
In stock
Available Quantity:   101
SKU
WB17T10011

Product Description

The General Electric WB17T10011 Range Terminal Block Assembly is an electrical connection block that is used as a central junction point where the incoming power is connected, and internal wiring is done. It fixes and arranges both live and directs them to internal circuits of heating elements, controls, and safety equipment, and is connected to the main input of power and the internal harnesses. It assists in ensuring steady, safe operation and aids in safe operation by providing stable, reliable connections and orderly distribution of electrical feeds.
Manufacturer
✓ This Product Replaces: WB17T10012, WB17T10023

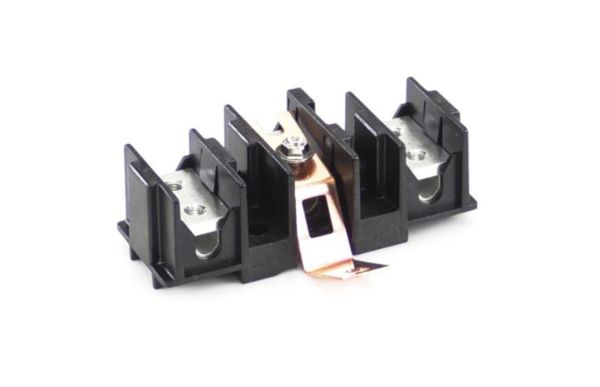

https://www.hnkparts.com/media/catalog/product/w/b/wb17t10011-62386.jpg

This Part Fits the Following Models (1110)

GE ZDP304LP6SS Gas Range GE ZDP304NP2SS Gas Range GE ZDP304LP2SS Gas Range GE ZDP304LP3SS Gas Range GE ZDP304LP4SS Gas Range GE ZDP304LP5SS Gas Range GE Profile P2S930SEL3SS Gas Range Or Dual Fuel GE Profile P2B940SEJ6SS Gas Range Or Dual Fuel GE ZDP304NP3SS Gas Range GE ZDP304NP4SS Gas Range GE ZDP304NP5SS Gas Range GE ZDP304NP6SS Gas Range GE P2B918DEM1BB Dual Fuel Range GE P2S975CEM2CC Gas Range GE P2S975CEM3CC Gas Range
Showing 1-15 of 1110
Manufacturer Name: General Electric
Product Number: WB17T10011
OEM Part Number: WB17T10011
Product Description: Terminal Block Asm

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB17T10011 Range Terminal Block Assembly
Your Rating
Customer Questions
What maintenance is required for the General Electric WB17T10011 Terminal Block Assembly?

Regularly inspect the range terminal block for signs of corrosion or loose connections. Ensure all wires are securely attached and terminals are clean. Power off the appliance before servicing. Promptly replace any damaged components to maintain better and accurate operation.

What are common issues with the General Electric WB17T10011 Terminal Block Assembly?

  • Loose or corroded terminals causing intermittent power.
  • Burnt or melted connectors due to high current.
  • Sparks or arcing during operation.
  • Difficulty in connecting or securing wires properly.

Installation Steps

Step1: Turn off power at the breaker and unplug the range to prevent electric shock.

Step2: Remove rear access panel and disconnect old terminal block wiring carefully, noting wire positions.

Step3: Mount new terminal block securely using original screws and align power cord terminals.

Step4: Reattach wires firmly, ensuring tight, clean connections to avoid arcing or overheating.

Step5: Restore power and test range operation, checking for stable heating and no sparks or loose connections.
