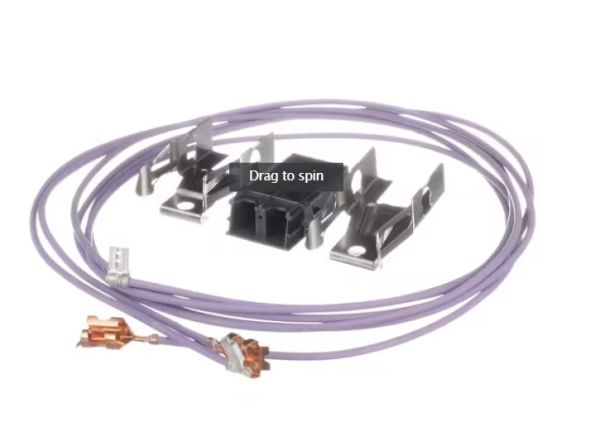

General Electric WB17T10006 Range Surface Burner Terminal Block Kit

Special Price $11.02 Regular Price $25.00
In stock
Available Quantity:   119
SKU
WB17T10006

Product Description

The General Electric WB17T10006 Range Surface Burner Terminal Block Kit ensures a secure electrical connection for consistent burner performance. It transmits power from the appliance to the burner element, enabling efficient heating. The heat-resistant components prevent overheating, while the durable wires maintain a stable electrical flow. This kit extends the lifespan of the appliance by reducing electrical failures and improving performance. Easy installation minimizes downtime, making it a cost-effective solution for maintaining reliable cooking functionality.
Manufacturer

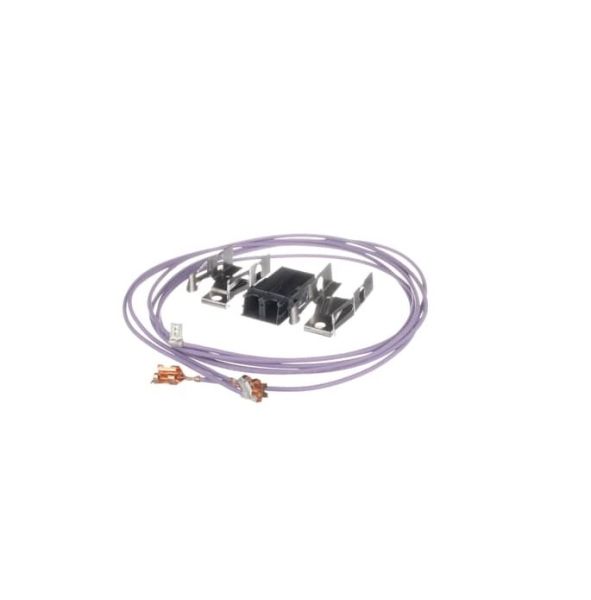

https://www.hnkparts.com/media/catalog/product/w/b/wb17t10006-83433.jpg

This Part Fits the Following Models (1007)

GE JSP39WK2WW Electric Range GE JSP39WK4WW Electric Range GE JSP39WK5WW Electric Range GE JSP39WK3WW Electric Range GE JSP26BD1CT Electric Range GE JSP26BD2 Electric Range GE JSP26BD2AD Electric Range GE JSP26BD2CT Electric Range GE JSP26BD3 Electric Range GE JSP26BW3 Electric Range GE JSP26BW3AD Electric Range GE JSP26BW4 Electric Range GE JSP26BW4AD Electric Range GE JSP26BD1 Electric Range GE JSP26BD1AD Electric Range
Showing 1-15 of 1007
Manufacturer Name: General Electric
Product Number: WB17T10006
OEM Part Number: WB17T10006
Product Description: Kit Surf Term Block

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB17T10006 Range Surface Burner Terminal Block Kit
Your Rating
Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Installation Steps

Step 1: Prioritize Safety: Prior to initiating any installation, it should ensure that the power to the stove is turned off at the breaker. This is crucial for your safety.

Step 2: Gather Tools: A small flathead screwdriver, a Phillips head screwdriver, needle nose pliers, and a voltage meter will be required.

Step 3: Detach the Burner and Receptacle Block: The burner should be disconnected from the receptacle block. Next, the flathead screwdriver and Phillips head screwdriver should be utilized to remove the two screws from the existing receptacle block. All wiring should be disconnected, and then the block should be carefully taken out.

Step 4: Position the New Receptacle Block: The adhesive backing from the new receptacle should be removed and it should be cautiously set in place. The block should be secured gently with the screws. All wires along with the grooved, curved, and straight spade connectors should be reattached. It should ensure that they are correctly connected to prevent any possible issues.

Step 5: Verify the Unit: Once the block is installed and fastened, the burner cord should be reconnected to the receptacle. The power should be restored and the unit should be checked for proper operation using a voltage meter.

Step 6: Completion: After testing is complete, the WB17T10006 GE Burner Receptacle Block Kit has been successfully replaced.

Please note that these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if it is accessible.
