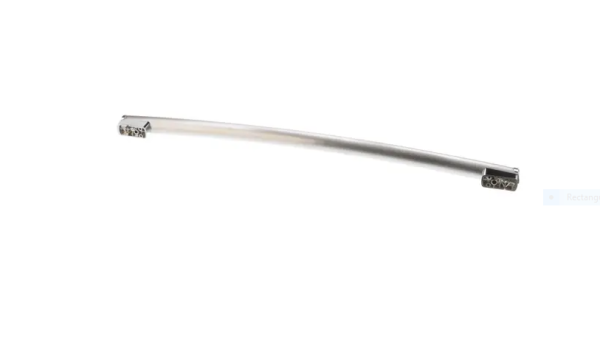

The General Electric WB15X26624 Range Handle and End Cap Assembly is a replacement handle set that is utilized to provide grip in opening and closing the door of the appliance. It is mounted on the top part of the front of the door, and it is attached to the frame of the door and compatible with the exterior appearance of the range. Its function is to enable the user to interact with the oven door to access the inside with controlled access and fit properly with the structure of the appliance.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The refrigerator should be disconnected from the electrical outlet and the water supply should be switched off.
Step 2: The handle and end cap assembly on the refrigerator door should be identified. It can be found near the upper section of the right side of the door. Any screws that hold the assembly in position should be removed.
Step 3: The handle and end cap assembly should be gently elevated away from the door. Caution should be exercised to avoid damaging the plastic components.
Step 4: The new assembly should be extracted from its packaging and it should be verified that all components are included. The handle, two end caps, and the installation hardware should be present.
Step 5: The handle should be affixed to the door utilizing the supplied screws, ensuring it is tightened adequately for a sturdy attachment.
Step 6: The two end caps should be positioned over the screw mounts. It should be confirmed that the end caps are correctly aligned and flush against the door.
Step 7: The end caps should be fastened using the provided screws and it should ensure that they are tightened securely.
Step 8: The refrigerator should be reconnected to the power outlet and the water supply should be activated.
Step 9: The functionality of the new handle and end cap assembly should be verified by opening and closing the door to ensure it operates correctly.
Well done! The handle and end cap assembly on your GE WB15X26624 refrigerator have been effectively replaced.
Please note that these instructions are intended for general assistance and should always be used alongside the manufacturer's manual, if it is available.
