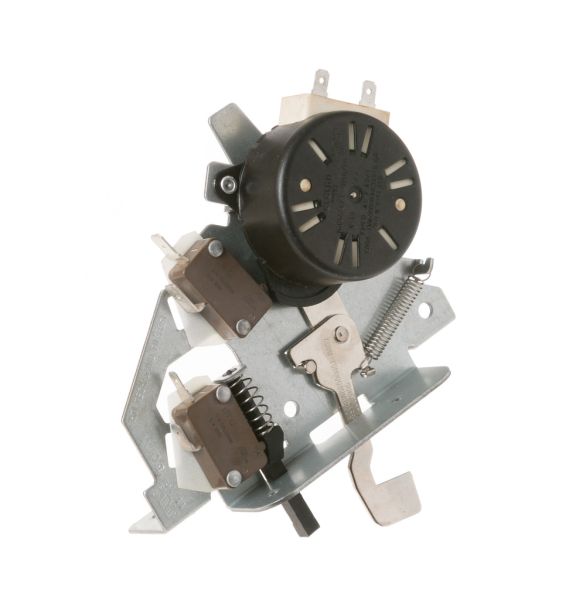

main product photo

General Electric WB10X28391 Range Latch Assembly

Be the first to review this product
Special Price $46.92 Regular Price $51.84
In stock
Available Quantity:   94
SKU
WB10X28391

Product Description

The General Electric WB10X28391 Range Latch Assembly is an element that ensures that the door is closed when it is in the self-clean mode and assists in making sure that the cooking appliance is properly sealed when it is used on a regular basis. The primary function is to activate the door lock mechanism, thereby ensuring that the door of the oven remains closed when it is needed. A latch is used in the mechanism, which snaps into position when the control system activates and keeps in contact with the compatible strike on the door.
Add to Wish List
Manufacturer
✓ This Product Replaces: WB14T10096, WB10X23475, WB10X21642
https://www.hnkparts.com/media/catalog/product/w/b/wb10x28391_general-electric_hnkparts.png

This Part Fits the Following Models (138)

GE ZTDX1FPSN1SS Free Standing Electric Range GE PT9051SL2SS Electric Range GE PT9051SL1SS Electric Range GE PT9050SF7SS Electric Range GE PT9050SF8SS Electric Range GE PT9051BL1TS Electric Range GE PT9051BL2TS Electric Range GE Profile PTS9000SN1SS Electric Range GE Monogram ZTS90DSSN1SS Electric Range GE Monogram ZET1SH3SS Electric Range GE Monogram ZET9050SH6SS Electric Range GE Monogram ZKS90DPSN1SS Electric Range GE Monogram ZKS90DSSN1SS Electric Range GE Monogram ZTS90DPSN1SS Electric Range GE Monogram ZET1PH2SS Electric Range
Showing 1-15 of 138
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB10X28391
OEM Part Number: WB10X28391
Product Description: Latch Asm

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:General Electric WB10X28391 Range Latch Assembly
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The appliance should be disconnected from its electrical outlet before starting this repair.

Step 2: Your Phillips screwdriver should be employed to take out all screws on the inner frame, situated around the edge of the appliance door.

Step 3: The inner frame should be gently detached from the door and placed aside.

Step 4: Next, your flat-head screwdriver should be utilized to eliminate the screws that secure the latch assembly.

Step 5: The latch assembly should be carefully extracted and placed aside.

Step 6: Your new GE WB10X28391 Latch Assembly should be grabbed and inserted into the door, ensuring it is fastened correctly.

Step 7: Following that, your Phillips screwdriver should be used to fasten the screws that were used to secure the latch assembly.

Step 8: Lastly, your Phillips screwdriver should be used to firmly reattach the inner frame back into the appliance door. It should be confirmed that all screws are tightened appropriately.

Step 9: Your new GE WB10X28391 Latch Assembly is now in place!

Please remember that these instructions serve as a general reference and should always be utilized alongside the manufacturer's manual, if one is available.
