The Whirlpool W11629974 Refrigerator Electronic Control Board efficiently manages the refrigerator’s cooling system by regulating temperature, controlling compressor cycles, and adjusting fan speeds. It continuously processes data from internal sensors to maintain optimal cooling, preventing temperature fluctuations that can affect food freshness. The board also oversees the automatic defrost system, activating it when necessary to prevent excessive frost buildup. Additionally, it ensures proper energy distribution, optimizing power consumption while keeping all essential functions running smoothly. By coordinating these critical operations, the control board enhances cooling efficiency, preserves food quality for longer, and helps maintain a stable internal environment with minimal effort.

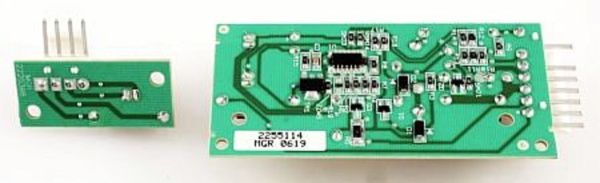

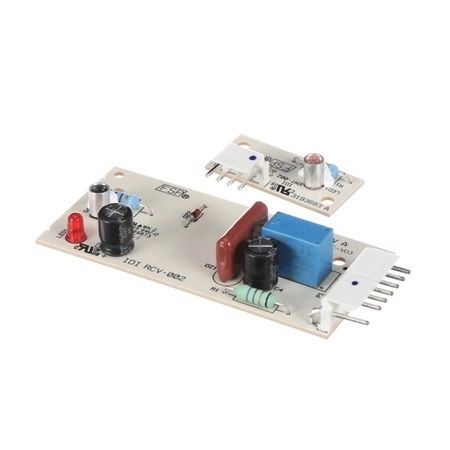

Supports ice-level monitoring through an integrated emitter and receiver assembly. The WHIRLPOOL W11629974 Refrigerator Electronic Control Board is an ice-level control board kit that includes an emitter and receiver. The assembly forms part of the refrigerator's ice-making control system and provides sensing information used to monitor the ice level.
Infrared Ice-Level Detection:
Uses an infrared emitter and receiver to detect the condition of the ice level within the storage area. The emitter produces an infrared beam while the receiver detects the beam, allowing changes in ice level to be converted into an electrical sensing signal for the connected ice-making controls.
Emitter and Receiver Integration:
Combines the infrared emitter and receiver as a coordinated sensing assembly. The paired components work together to establish and detect the infrared beam used for ice-level monitoring.
Replacement Guidelines:
Replacing the Refrigerator Electronic Control Board is appropriate if it is damaged or no longer provides accurate ice-level sensing. Verify part number W11629974 and the complete refrigerator model number before replacement. Replace the board if deterioration affects ice-level detection, signal communication, or normal ice-making operation.
Common Failure Symptoms:
Ice production stopping when the ice level is low.
Ice production continuing after the storage area reaches its intended level.
Inconsistent ice-level detection.
Ice-making operation responding incorrectly to the detected ice level.
Ice maker failing to produce ice as expected.
Equipment Compatibility:
The WHIRLPOOL W11629974 Refrigerator Electronic Control Board is intended for equipment that specifies part number W11629974. Verify the refrigerator model and manufacturer's parts documentation before purchasing to help confirm the correct application. The part is listed for compatible Whirlpool-family refrigerator applications.
What maintenance is required for the Whirlpool W11629974 Electronic Control Board?
Keep the control board area free from dust and moisture by ensuring proper ventilation inside the appliance housing. Inspect wiring connections periodically for looseness or corrosion. Use a surge protector to prevent electrical damage. Always disconnect power before accessing internal components.
What are common issues with the Whirlpool W11629974 Electronic Control Board?
Refrigerator not powering on.
Inconsistent temperature regulation.
Display panel unresponsive.
Compressor not cycling properly.
How does the W11629974 monitor ice level?
It uses an infrared sensing arrangement to detect changes in the ice level and provide corresponding electronic information.
How do you maintain the Whirlpool W11629974 Refrigerator Electronic Control Board?
Inspect the control board and related connections during routine refrigerator service for visible damage, moisture, corrosion, loose connectors, or signs of overheating.
How does the W11629974 communicate ice-level information?
It converts the detected ice-level condition into electronic information for the connected ice-making control system.
When should the Whirlpool W11629974 Refrigerator Electronic Control Board be replaced?
The control board may require replacement when it is damaged, has failed electronic components, or is confirmed to be the cause of refrigerator control issues.
What can incorrect ice-level sensing affect?
Incorrect sensing can cause ice production to stop too early, continue beyond the intended level, or respond inconsistently to the ice level.
Installation Steps
Step1: Unplug the refrigerator to avoid electrical risk.
Step2: Remove the access panel screws to display the board.
Step3: Disconnect wire connectors from the existing control board.
Step4: Mount the new control board and reconnect all wiring securely.
Step5: Reinstall the panel, restore power, and verify normal operation.
