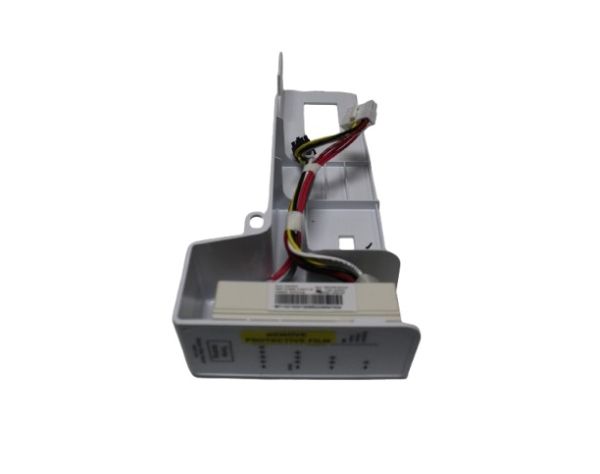

Whirlpool W11546690 Refrigerator Control Box

Be the first to review this product
Special Price $79.61 Regular Price $145.57
In stock
Available Quantity:   157
SKU
W11546690

Product Description

The Whirlpool W11546690 Refrigerator Control Box is responsible for controlling the compressor, fan motors and the defrost cycle through signals that are received from temperature sensors. The control box receives commands from the thermostat and regulates the functioning of the refrigerator. When the temperature of the fridge is set to the required level, it regulates the power to the cooling parts. This leads to efficiency, low power usage, and durability of the appliances in the house.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11546690-50233.jpg

This Part Fits the Following Models (11)

Manufacturer Name: WHIRLPOOL
Product Number: W11546690
OEM Part Number: W11546690
Product Description: Contrl-Box

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool W11546690 Refrigerator Control Box
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11546690 Control Box?

Confirm the control box responds to temperature adjustments and mode changes. Keep connectors clean and firmly seated. Observe operation during defrost and cooling cycles to ensure commands are executed accurately and the display reflects selected settings.

What are common issues with the Whirlpool W11546690 Control Box?

  • Cooling cycles not starting.
  • Defrost cycle not triggering.
  • Display failing to update.
  • Alarm signals activating unexpectedly.

Installation Steps

Step1: Disconnect power to the refrigerator unit.

Step2: Access the control box inside the fresh food section.

Step3: Remove the cover and disconnect wiring connectors.

Step4: Unscrew and remove the existing control box.

Step5: Install the new unit and reconnect all wiring.

Step6: Reassemble and restore power to verify proper operation.
