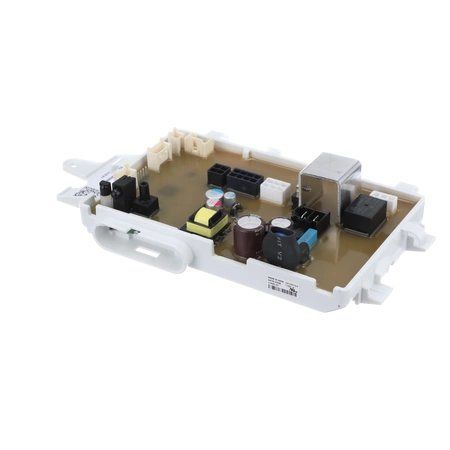

Whirlpool W11543996 Washer Electronic Control Board

Be the first to review this product
Special Price $210.08 Regular Price $217.95
In stock
Available Quantity:   56
SKU
W11543996

Product Description

The Whirlpool W11543996 Electronic Control Board is used to control the operations of a washer. The cycles, water level, temperature settings, and many other aspects of the appliance. This board takes signals from the various sensors of the machine and then relays the signals to the motor and pump among other parts and assists in enhancing the washing performance, and the time taken to complete the washing cycle and also eliminates the need for other repairs.
Add to Wish List
Washing Machine Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11543996-19633.jpg

This Part Fits the Following Models (4)

Manufacturer Name: WHIRLPOOL
Product Number: W11543996
OEM Part Number: W11543996
Product Description: Cntrl-Elec+Core

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool W11543996 Washer Electronic Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11543996 Electronic Control Board?

Maintain the control board by ensuring the washer is kept dry and protected from moisture or power surges. Regularly inspect wiring connections for looseness or corrosion. Use a surge protector to prevent electrical damage. Always disconnect power before servicing to ensure safety.

What are common issues with the Whirlpool W11543996 Electronic Control Board?

  • Washer not starting or responding to inputs.
  • Error codes displayed on control panel.
  • Inconsistent cycle operation or interruptions.
  • Failure to communicate with other internal components.
  • Buttons or settings not functioning properly.

Installation Steps

Step1: Disconnect washer power from outlet, switch off breaker, and shut water supply to prevent electric shock.

Step2: Remove washer top and rear access panel using screwdriver.

Step3: Locate old control board and label wiring harnesses before disconnecting connectors.

Step4: Install new board and reconnect all wires securely.

Step5: Reassemble panels, restore power, and test washer cycle carefully.

Step6: Ensure no loose connections or exposed wires before operation.
