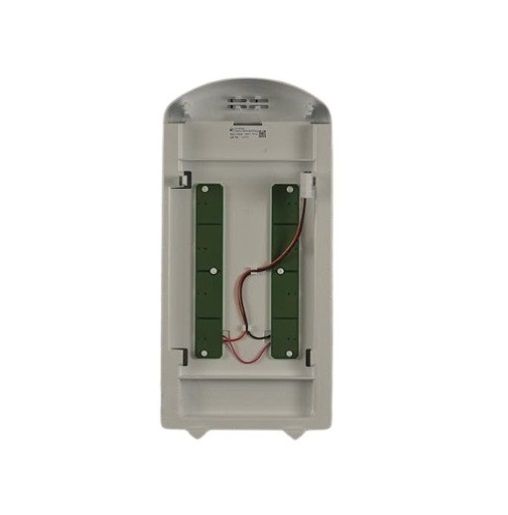

The Whirlpool W11527432 LED Light Module offers optimal illumination within the refrigerator. Works by acting as a substitute for the defective or worn-out light module and provides a steady light when the door is open. This light is integrated with the electrical system of the refrigerator and does not take time to turn on the light inside the refrigerator. The energy-efficient technology uses less power and has longevity.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The power supply to the appliance should be cut off at the circuit breaker and it should be disconnected from the outlet.
Step 2: The top panel of your appliance should be taken off to reveal the internal components.
Step 3: The module should be identified – it is typically located at the back of the appliance close to the control board.
Step 4: Any wiring harnesses linked to the module should be unscrewed and removed, then the screws securing the module should be taken out and it should be extracted from the appliance.
Step 5: The new module should be installed following the reverse order of the previous steps: First, the wiring harnesses should be connected (it should be ensured they are securely fastened and correctly oriented for safety), then the screws should be reinstalled.
Step 6: After all connections are tightened, the top panel should be reattached and the power should be restored at the circuit breaker before the appliance is plugged back into the wall outlet.
Step 7: The appliance's functionality should be verified to confirm the new module is working as intended.
These instructions are aimed to assist you in replacing the Whirlpool W11527432 Module safely and effectively. For any inquiries, a local appliance repair expert should be reached out to.
Please remember, these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
