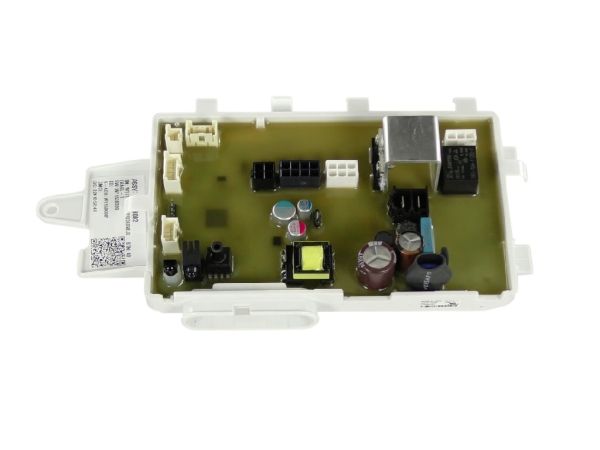

main product photo

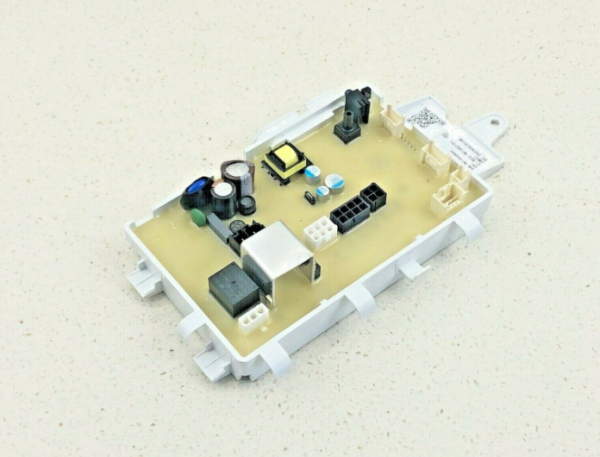

Whirlpool W11543997 Washer Electronic Control Board

Rating:
5 5 1
1 Review Add Your Review
Special Price $206.90 Regular Price $225.57
In stock
Available Quantity:   100
SKU
W11543997

Product Description

The Whirlpool W11543997 Washer Electronic Control Board responsible for controlling and coordinating the operations of the machine, including the wash cycles, water temperature, and spin speed. This control board operates by receiving signals from the different sensors and then passing the right signals to the motor and other components of the washer. It bring an improved cycle control and energy efficiency of the washing machine.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11543997-38425.jpg

This Part Fits the Following Models (8)

Manufacturer Name: WHIRLPOOL
Product Number: W11498808
OEM Part Number: W11498808
Product Description: Repl: W11543997

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Whirlpool W11543997 Washer Electronic Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11543997 Electronic Control Board?

Regularly inspect the control board connections for tightness and any signs of moisture or corrosion. Clean surrounding areas gently to remove dust or lint. Test all washer cycles and sensor functions to ensure proper operation. Observe for unusual noises or delayed responses during operation.

What are common issues with the Whirlpool W11543997 Electronic Control Board?

  • Cycles failing to start.
  • Buttons or touchpads unresponsive.
  • Washer not draining or spinning correctly.
  • Wash cycles are stopping mid-operation.

Installation Steps

Step1: Unplug the washer to avoid electrical shock.

Step2: Remove the control panel by unscrewing or unclipping it.

Step3: Disconnect all wiring harnesses from the old board, noting their positions.

Step4: Install the new control board, reconnecting all harnesses correctly.

Step5: Secure the panel back in place with screws or clips.

Step6: Plug in the washer and test cycle functionality.
