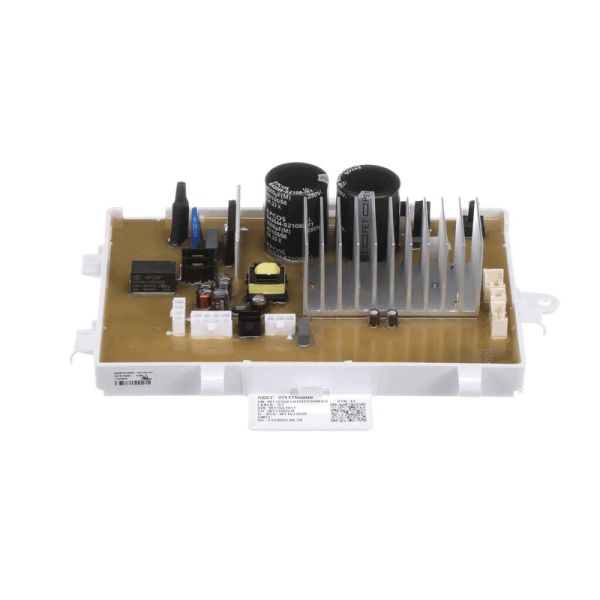

The Whirlpool W11419171 Electronic Control Board effectively controls the washing machine, including cycles, water, and motor control. It takes inputs from the sensors and the settings of the user to provide the better performance. It has the control of wash, rinse and spin functions and the timing of these functions to ensure energy conservation. This component is developed for durability to improve the washing performance, durability of the appliance and stability of the operations.
Controls programmed electronic functions within the washing machine, the Whirlpool W11419171 Washing Machine Electronic Control Board serves as the central control component for the washer's electronic operating functions. It coordinates the appliance's programmed operations according to the selected wash cycle. The board provides the electronic control interface between the washer's programmed functions and its operating sequence.
Electronic Signal Processing:
The electronic control board receives signals from the washing machine's control system and processes them according to the selected operation. It then coordinates the corresponding electronic functions required by the appliance.This signal-processing function allows the board to convert control inputs into coordinated electronic commands for washer operation.
Wash Cycle Control:
During a wash cycle, the electronic control board manages the sequence of programmed washer functions. It coordinates the electronic commands associated with each stage of the selected cycle and allows the appliance to progress through its programmed operation.The board manages the electronic sequence while the washer's individual components perform their respective functions.
Replacement Guidelines:
Replace the Whirlpool W11419171 Washing Machine Electronic Control Board when the board becomes physically damaged or no longer performs its intended electronic control functions. Replacement may also be appropriate when washer operation becomes inconsistent or designated functions fail to respond normally. Verify the complete washer model number and manufacturer part number W11419171 before replacement.
Common Failure Symptoms:
Observable symptoms of a malfunctioning washing machine electronic control board may include:
Washer does not start.
Washer does not respond to selected controls.
Washer stops during an operating cycle.
Washer fails to advance through the selected cycle.
Electronic washer functions do not respond as expected.
Equipment Compatibility:
The Whirlpool W11419171 Washing Machine Electronic Control Board should be matched to the applicable Whirlpool washer by verifying the complete washer model number, electronic control configuration, and manufacturer part number W11419171 against the relevant Whirlpool parts documentation before purchase.
What maintenance is required for the Whirlpool W11419171 Electronic Control Board?
Keep the control board area dry and free from detergent spills that could cause shorts. Disconnect power before accessing or inspecting wiring harnesses for secure connections. Ensure proper ventilation around the board to avoid overheating. Use a surge protector to guard against voltage spikes.
What are common issues with the Whirlpool W11419171 Electronic Control Board?
Cycle selections fail to start washer.
Error codes display incorrectly.
Buttons or the display are unresponsive.
Settings do not save
How does an electronic control board manage a washing machine cycle?
An electronic control board processes operating signals and coordinates the programmed functions required for the selected wash cycle.
What is Whirlpool W11419171 Washing Machine Electronic Control Board?
Whirlpool W11419171 is an electronic control component that coordinates programmed washer functions and communicates with connected electronic components during operation.
What role does an electronic control board play during a wash cycle?
It manages the electronic sequence associated with each stage of the selected cycle while the washer's individual components perform their respective functions.
How does a washer control board process operating signals?
The control board receives signals from the washing machine's control system and processes them into coordinated electronic commands for the required washer functions.
Why can a faulty electronic control board affect washer operation?
A malfunctioning control board can affect the washer's response to selected controls, interrupt cycle progression, or prevent programmed electronic functions from operating as intended.
Installation Steps
Step1: Unplug the washer and turn off the water supply.
Step2: Remove the top or rear control panel screws to access the board.
Step3: Disconnect all wire harnesses from the old control board carefully.
Step4: Remove mounting screws and take out the board.
Step5: Install the new control board, reconnect wiring securely, reassemble the panel, and restore power.
