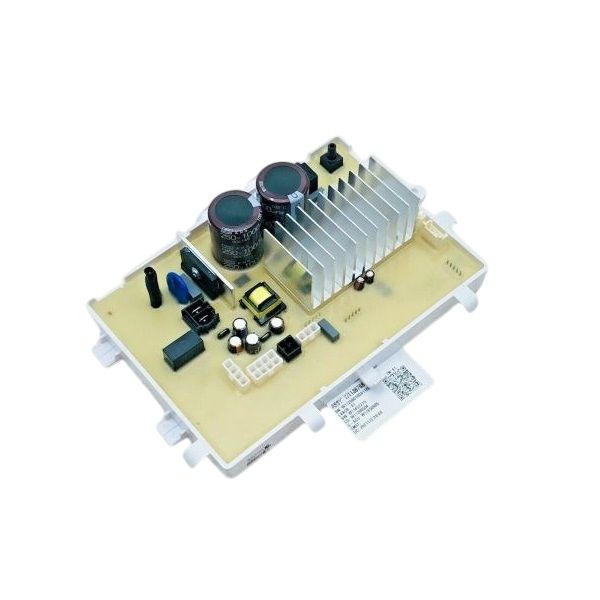

The Whirlpool W11419051 Washer Electronic Control Board controls the wash cycles of the washer by controlling the water level, temperature and the motor control for the appliance. It controls the sensor inputs to achieve the right settings that help to operate the machine with high accuracy in every cycle. In this way, it synchronizes different parts to improve energy usage and ensure the quality of washing is not compromised.
Regulates the operation of the washer throughout the wash cycle. The Whirlpool W11419051 Washer Electronic Control Board serves as the primary electronic control module, processing input from connected switches and sensors while managing water fill, agitation, draining, spinning, and programmed cycle progression. As the central control board within the appliance, it coordinates communication between electrical components to support the washer's programmed operating sequence.
Sensor Monitoring:
The control board continuously monitors input from connected sensors to evaluate operating conditions during each stage of the wash cycle. Information received from components such as the water level sensor, lid lock system, and motor feedback circuits allows the control board to determine when specific operating requirements have been satisfied before advancing to the next programmed function. This ongoing sensor monitoring enables the washer to follow its programmed operating sequence based on real-time system conditions.
Replacement Guidelines:
Consider replacing the Whirlpool W11419051 Washer Electronic Control Board when it fails to process control inputs, communicate with connected components, or maintain the programmed wash sequence. Symptoms such as interrupted cycles, unresponsive controls, or inconsistent washer functions may indicate electronic control failure. Verify the appliance model and electrical configuration before ordering to ensure the replacement matches the intended washer.
Common Failure Symptoms:
Washer does not power on or initiate a wash cycle.
Wash cycle stops unexpectedly or fails to advance.
Agitation or spin functions operate inconsistently.
Washer does not complete draining or spinning sequences.
Electronic control-related error codes appear on the display.
Appliance becomes unresponsive to cycle selections or operating commands.
Equipment Compatibility:
The Whirlpool W11419051 Washer Electronic Control Board is designed for select Whirlpool washing machines and may also be compatible with other appliance brands manufactured by Whirlpool where specified by the manufacturer. Always verify the appliance model number and existing part number before ordering to ensure proper compatibility.
Technical Specifications:
Part Number: W11419051
Brand: Whirlpool
Product Type: Electronic Control Board / Main Control Board
What are the common signs that a control board may need replacement?
Signs of a faulty control board can include erratic appliance behavior, failure to start, incorrect temperature settings, or error codes displaying on the appliance's control panel.
Can I repair a faulty control board instead of replacing it?
Repairing control boards can be complex and may require specialized equipment and technical knowledge. In many cases, it's more practical and reliable to replace the control board with a new one.
How do I identify if the W11419051 Control Board is compatible with my Whirlpool appliance?
To ensure compatibility, you should check the model number of your appliance and cross-reference it with the list of compatible control boards provided by Whirlpool or authorized parts suppliers.
What maintenance is required for the Whirlpool W11419051 Electronic Control Board?
Disconnect power before accessing the control housing to prevent shock hazards. Keep the board area dry and ensure proper ventilation to avoid overheating. Inspect wire harness connections for corrosion or looseness. Using a surge protector helps safeguard the board from electrical spikes.
What are common issues with the Whirlpool W11419051 Electronic Control Board?
Machine pauses randomly during use.
Error codes display incorrectly.
Buttons unresponsive.
Cycle settings not saving.
What type of component is the Whirlpool W11419051?
The Whirlpool W11419051 is an electronic control board, also identified as a main control board, for washing machine applications.
What information distinguishes the W11419051 control board from other washer control boards?
The W11419051 part number identifies this specific electronic control board, while W11387680 is listed as its replacement part number.
What components communicate with the washer's electronic control board?
The control board receives operating information from connected components such as the water level sensor, lid lock system, and motor feedback circuits.
Why does the washer control board process sensor input during a cycle?
The control board processes sensor input to evaluate reported operating conditions and coordinate progression between programmed washer functions.
What should buyers compare when selecting the W11419051 control board?
Buyers should compare the washing machine's complete model number and the existing control board part number with applicable manufacturer documentation to confirm the intended application.
Installation Steps
Step1: Unplug the washer and turn off the water supply.
Step2: Remove the top or rear access panel to reach the control board.
Step3: Disconnect all wire harnesses from the old board carefully.
Step4: Remove mounting screws and replace with the new electronic control board.
Step5: Reconnect wiring securely, reassemble the panel, and restore power.
