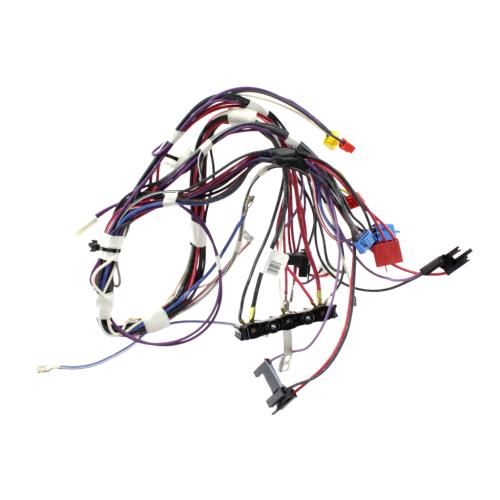

Whirlpool W11416047 Range Main Wire Harness Assembly

Be the first to review this product
Special Price $81.58 Regular Price $101.95
In stock
Available Quantity:   1
SKU
W11416047

Product Description

The Whirlpool W11416047 Range Main Wire Harness Assembly connects the control board to all working parts of the appliance. It operates through dispersing power and signals to burners, sensors, and motors to have coordinated work. It is placed on the range cabinet and firmly placed on the control board and component connectors so that it can be sure of an electrical communication and a regular operation of all the appliance systems.
Add to Wish List
Stove & Oven Parts, Wire Harnesses,
15.55"X9.25"X2.15"
Manufacturer
https://www.hnkparts.com/media/catalog/product/W/1/W11416047_WHIRLPOOL_1.jpg

This Part Fits the Following Models (11)

Write Your Own Review
You're reviewing:Whirlpool W11416047 Range Main Wire Harness Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11416047 Main Wire Harness Assembly?

Regularly inspect the wire harness for signs of wear, heat damage, or loose connections. Ensure all connectors remain firmly seated and free from corrosion. Avoid pinching or bending wires during servicing. Always disconnect power before handling to prevent electrical hazards.

What are common issues with the Whirlpool W11416047 Main Wire Harness Assembly?

  • Loose or disconnected wiring causing intermittent power loss.
  • Burnt or melted insulation from heat exposure.
  • Corroded connectors leading to Less electrical contact.
  • Short circuits resulting in control panel or burner malfunction.

Installation Steps

Step1: Disconnect power range at the breaker to avoid electric shock.

Step2: Remove rear access panel using a screwdriver.

Step3: Locate and document existing wire connections.

Step4: Carefully disconnect old harness from terminals.

Step5: Route and connect new harness matching original layout.

Step6: Secure wiring with clips to damage.

Step7: Reattach panel and restore power to test operation.
