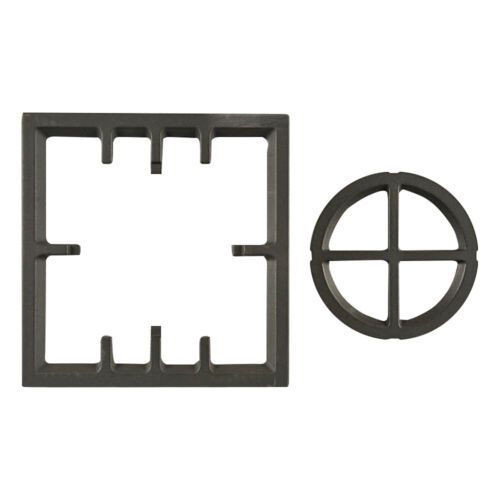

The Whirlpool W11380124 Range Burner Grate designed to offer support to the cookware to ensure that it sits well on the burner and does not move around when in use. This heavy duty cast iron grate is to be placed over the burners and provides the flames the necessary platform to spread heat to the pots and pans. Its construction is sturdy and does not bend or break under high temperatures or excessive usage.
Provides a stable, elevated surface for supporting cookware above the burner area during cooking. The Whirlpool W11380124 Range Burner Grate is a structural cooktop component positioned on the range surface to maintain proper cookware placement over the burners. Its raised support structure helps keep cookware stable during cooking while forming part of the range's cooking surface layout.
Cookware Positioning:
The burner grate positions cookware over the selected burner location and maintains a consistent support surface during cooking. Its design corresponds with the range’s burner arrangement, allowing cookware to remain aligned with the heat source during cooking. The structure of the grate supports consistent cookware placement across the cooktop surface while remaining separate from the gas or electrical controls that operate the burners.
Support and Heat Positioning:
The grate maintains the intended spacing between cookware and the burner assembly during surface cooking. Its support structure allows heat generated by the burner to reach the cookware while keeping the cookware positioned over the designated cooking area. This arrangement supports consistent cookware placement during normal range operation.
Replacement Guidelines:
Whirlpool W11380124 Range Burner Grate should be replaced when cracks, broken support points, warping, or other physical deterioration prevents cookware from sitting securely and evenly over the burner area. Excessive surface wear or deformation that causes cookware to rock, shift, or sit out of position can also indicate that the grate requires replacement. Confirm the part number, grate shape, burner layout, and range model before installation.
Common Failure Symptoms:
Cookware does not sit evenly on the grate.
Distortion or changes in the original shape of the support structure.
Grate does not remain properly positioned on the cooktop.
Cookware rocks or becomes unstable during use.
Reduced stability caused by deterioration of the grate support points.
Equipment Compatibility:
The W11380124 burner grate is used with Whirlpool range models that incorporate this specific surface support design. Its structure corresponds with cooktop layouts where cookware support and burner locations are configured for this grate style. Check the range model number and part details to verify the correct application.
What maintenance is required for the Whirlpool W11380124 Burner Grate?
Clean the burner grate regularly with warm water and mild detergent to remove grease and food residue that can char or stain. Dry thoroughly to prevent rust formation. Inspect for cracks or weakened sections that may affect stability. Ensure grates sit properly on cooktop supports to facilitate even heating.
What are common issues with the Whirlpool W11380124 Burner Grate?
Burners wobble during cooking.
Grates scratch easily.
Difficult to clean spills.
Grates misalign with burner openings.
Why do burner grates have different shapes and sizes?
Burner grates are designed to match specific burner layouts, cooktop dimensions, and cookware support configurations. Their size and shape vary to fit the intended appliance model and cooking surface design.
Can a range operate without a burner grate?
The surface burner may produce a flame without the grate installed, but the burner grate is required to properly support cookware above the burner during cooking.
Does the burner grate affect cookware stability?
Yes. The burner grate provides a stable platform that helps keep cookware properly positioned over the surface burner throughout the cooking process.
Why should the part number be verified before purchasing a burner grate?
Verifying the part number helps ensure the replacement burner grate matches the appliance's burner arrangement, mounting configuration, and cooking surface design for proper compatibility.
What is the purpose of a Whirlpool W11380124 burner grate on a range?
A burner grate provides an elevated and stable surface for supporting cookware above the range's surface burner during cooking.
Installation Steps
Step 1: The power supply to the range should be cut off, typically located at the back of the stove.
Step 2: Once the power is disconnected, the grate-burner should be taken out from the range. A screwdriver should be utilized to unscrew the screws on the grate-burner’s retaining brackets, then it should be gently lifted off the range.
Step 3: Next, needle-nose pliers should be employed to carefully detach the wires linking the old burner to the range.
Step 4: After the old burner is removed, the range should be thoroughly checked for any leftover debris. Any debris should be eliminated, and then the new Whirlpool W11380124 Grate-Burner should be positioned in its designated spot.
Step 5: The new grate-burner should be fastened using the original screws, ensuring that it is secured tightly.
Step 6: The wires should be reattached to the new grate-burner, making sure to align the wire colors with the corresponding colored terminals on the new burner.
Step 7: After all connections are securely made, power should be restored to the range and it should be verified that the new burner operates correctly.
Congratulations! Your Whirlpool W11380124 Grate-Burner has been successfully swapped.
Please remember, these instructions serve as general assistance and should always be utilized alongside the manufacturer’s manual, if accessible.
