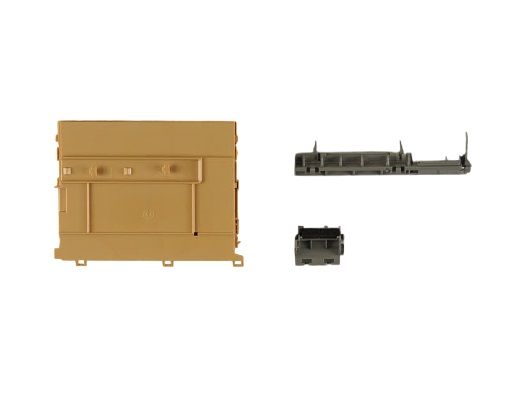

main product photo

Whirlpool W11305296 Dishwasher Electronic Control Board

Be the first to review this product
Special Price $139.02 Regular Price $229.24
In stock
Available Quantity:   81
SKU
W11305296

Product Description

The Whirlpool W11305296 Electronic Control Board is responsible for controlling the various cycles and functions of the dishwasher. It receives inputs from the buttons and sensors and then sends signals to the motor and other parts to perform its functions. The control board receives input from the user regarding the wash modes, water temperature and drying functions and controls them to provide better results. This electronic board increases the durability and effectiveness of the appliance, lowering the breakdowns.
Add to Wish List
Manufacturer
✓ This Product Replaces: W11087206
https://www.hnkparts.com/media/catalog/product/w/1/w11305296-14557.jpg

This Part Fits the Following Models (4)

Manufacturer Name: WHIRLPOOL
Product Number: W11305296
OEM Part Number: W11305296
Product Description: Cntrl-Elec

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool W11305296 Dishwasher Electronic Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11305296 Electronic Control Board?

Maintenance involves keeping the dishwasher control board area clean, dry, and free from grease or moisture buildup to prevent electrical faults. Periodically inspect wiring connections for corrosion or looseness. Avoid power surges by using proper grounding or surge protection.

What are common issues with the Whirlpool W11305296 Electronic Control Board?

  • Unresponsive dishwasher control panel or buttons.
  • Intermittent or complete power failure.
  • Erratic cycle action or incorrect cycle selection.
  • Error codes displayed due to communication failures.
  • Burnt components or visible board damage from electrical surges.

Installation Steps

Step1: Disconnect dishwasher power at the breaker and shut off water supply. Wear gloves for safety. Remove dishwasher access panel and locate control board behind door console.

Step2: disconnect harnesses and unmount old board carefully.

Step3: Install new board, reconnect wires to matching terminals securely.

Step4: Reassemble panel, restore power and test dishwasher cycle.

Step5: Check for leaks or error codes after operation.
