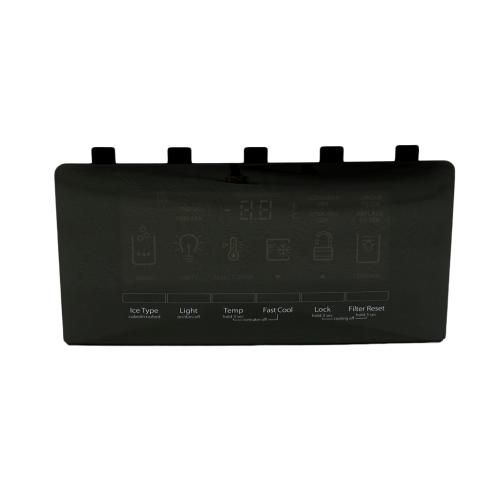

Whirlpool W11284720 Refrigerator User Interface Control Board

Be the first to review this product
Special Price $145.11 Regular Price $162.95
In stock
Available Quantity:   8
SKU
W11284720
✓ This Product Replaces: W11157004

Product Description

Whirlpool W11284720 Refrigerator User Interface Control Panel designed to enable users to set temperatures, control ice maker, and turn on other features through buttons and displays. It achieves this by transmitting signals to the internal circuits of the refrigerator to change operations to the selected preferences. It has an effective outlook that enhances the usability by providing easy and uncomplicated control.
Add to Wish List
Refrigerator Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11284720_whirlpool_hnkparts.png

This Part Fits the Following Models (25)

Showing 1-15 of 25

Product Overview:

Provides the electronic user interface for refrigerator control and display functions. The WHIRLPOOL W11284720 Refrigerator User Interface Control Panel processes user selections through its electronic circuitry and communicates corresponding control information to the refrigerator's electronic control system. Its interface assembly connects user interaction with the refrigerator's electronically managed operation.

Input Processing:

Processes electrical signals generated by user selections through the interface circuitry. The board interprets individual inputs and communicates the corresponding electronic information to the refrigerator's control system.

Signal Communication:

Transfers processed user-input information between the interface circuitry and applicable refrigerator control circuits. This electronic communication allows selected commands to reach the corresponding control system.

Replacement Guidelines:

Replacing the Refrigerator User Interface Control Board is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify the WHIRLPOOL part number W11284720 and the complete refrigerator model number before replacement. Replace the control board if deterioration affects user input, signal processing, control response, electronic communication, or normal refrigerator operation.

Common Failure Symptoms:

  • Refrigerator controls not responding.
  • User selections failing to register correctly.
  • Display operation becoming abnormal.
  • Control-panel response becoming intermittent.
  • Selected settings not responding as expected.
  • Certain electronic controls becoming unavailable.

Equipment Compatibility:

The WHIRLPOOL W11284720 Refrigerator User Interface Control Board is intended for equipment that specifies part number W11284720. Verify the complete refrigerator model number and manufacturer's parts documentation before purchasing to help confirm the correct application.

Technical Specifications:

Brand: WHIRLPOOL

Part Number: W11284720

Product Type: User Interface Control Panel

Appliance Type: Refrigerator

Reviews
Write Your Own Review
You're reviewing:Whirlpool W11284720 Refrigerator User Interface Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11284720 User Interface Control Board?

Check that menu selections register immediately when buttons are pressed. Keep the interface surface dry and free from condensation buildup. Verify communication with internal systems after power interruptions, and disconnect the refrigerator from power before accessing the control housing.

What are common issues with the Whirlpool W11284720 User Interface Control Board?

  • Buttons not responding consistently.
  • Display failing to update settings.
  • Controls freezing during operation.
  • Interface restarting unexpectedly.

What does the Whirlpool W11284720 control panel do?

It processes user selections through the refrigerator's electronic interface and communicates the corresponding control information to the appliance's electronic control system.

What does the W11284720 user interface control panel process?

It processes electrical input signals generated by user interaction with the refrigerator's control interface.

Can the W11284720 affect refrigerator control response?

Yes. A deteriorated control panel can affect how user selections are detected and how corresponding electronic control information is communicated.

What can cause the W11284720 control panel to operate inconsistently?

Physical or electronic deterioration can affect input detection, signal processing, or communication with the refrigerator's control system.

What are common signs of a problem with the W11284720?

Common signs include unresponsive selections, intermittent control response, incorrect input recognition, or abnormal electronic response.

Installation Steps

Step1: Unplug the refrigerator to prevent electric shock.

Step2: Open the control panel or display area to access the interface board.

Step3: Disconnect all wiring connectors from the old control board carefully.

Step4: Unscrew and remove the existing board from its mounting.

Step5: Install the new control board and reconnect all wires securely.

Step6: Close the panel, restore power, and test all controls for proper operation.
