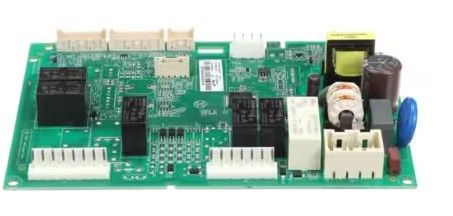

The Whirlpool W11449482 Refrigerator Electronic Control Board controls the temperature and the operations of the compressor, fans, and defrost systems. It also uses sensor data to control cooling cycles to achieve the better performance. It cools the various components by sending signals, avoids the formation of frost and increases the efficiency of energy consumption. Intended for dependability, it assists in increasing the durability of internal components as well as decreasing power consumption.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: All required tools and materials are to be assembled. In order to swap out the Whirlpool W11449482 CNTRL-ELEC, a screwdriver, a plastic tool (or putty knife), along with a new control panel, will be needed.
Step 2: The front panel of the Whirlpool W11449482 CNTRL-ELEC is to be identified. The plastic tool or putty knife is to be utilized to gently detach the front cover panel from the appliance's frame.
Step 3: The wiring harness is to be unplugged from the rear side of the control panel. The screws securing the panel in position are to be taken out with the screwdriver.
Step 4: The wiring from the upper part of the control panel is to be gently disconnected. After the old panel is taken out, the new one can be positioned in its designated area.
Step 5: The new control panel is to be placed into the opening and fastened using the screws that were taken out in the earlier step.
Step 6: The wiring between the control panel and the appliance frame is to be reattached, ensuring that the connectors are tightly fitted.
Step 7: The front panel is to be repositioned onto the appliance frame and it is to be confirmed that it is firmly secured.
Step 8: The power supply to the appliance is to be activated and the functionality of the newly installed control panel is to be verified. If everything functions as expected, the task has been completed!
Well done! The Whirlpool W11449482 CNTRL-ELEC has been successfully replaced. All work should be reviewed prior to energizing the appliance to guarantee a safe and effective installation.
Please note, these instructions are to serve as general guidance and should always be utilized alongside the manufacturer's manual, if it is available.
