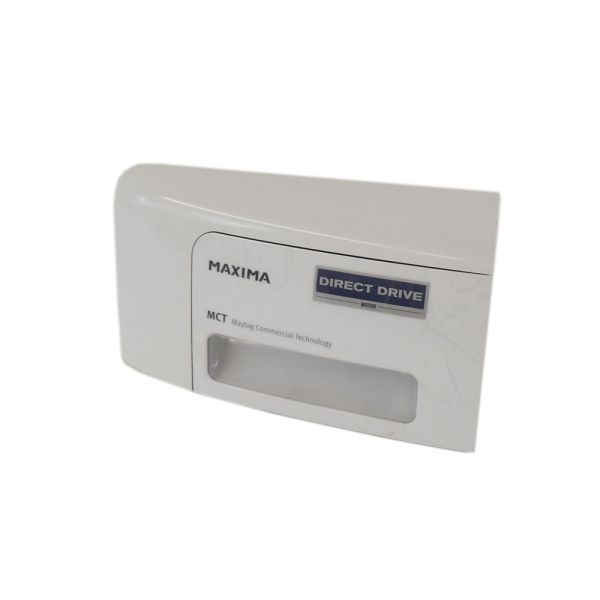

The Whirlpool W11174397 Washer Dispenser Drawer Handle allows the washing machine's detergent drawer to be opened and closed by engaging a latch mechanism. The handle is pulled, releasing the drawer to slide outward. Subsequently, pushing the drawer in re-engages the latch, securing it. A functional dispenser drawer handle ensures easy access to add detergent and fabric softener. It facilitates consistent detergent delivery during wash cycles.
Step 1: Your washing machine should be disconnected from the electrical outlet.
Step 2: The water supply should be shut off by rotating the valves to the left.
Step 3: The washing machine should be gently tilted towards you to improve access to the rear panel of the unit.
Step 4: A suitable screwdriver should be utilized to take out the screws securing the panel and it should be carefully detached.
Step 5: The washer's dispenser handle, which is linked to a plastic lever arm, should be identified.
Step 6: The plastic lever arm should be detached by removing the screw and it should be placed aside.
Step 7: A flat-head screwdriver should be positioned between the dispenser housing and the handle, then they should be gently pried apart.
Step 8: The damaged handle should be extracted by pulling it away from the machine.
Step 9: The new handle should be placed into position and it should ensure that it fits securely.
Step 10: The plastic lever arm should be reconnected to the new handle, using the screw and it should be tightened firmly.
Step 11: The back panel should be reinstalled and it should be fastened with the screws.
Step 12: The water supply valves should be reactivated, the power cord should be reconnected, and it should be verified that the washer operates correctly.
Please note that these instructions should be served as general guidance and should always be referenced alongside the manufacturer's manual, if available.
