Product Overview:

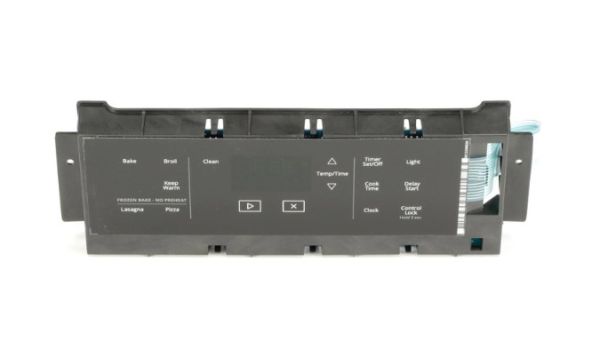

Serves as an electronic control component within the range's oven control system, the Whirlpool W11159621 Range Control Board processes operating commands and coordinates electrical functions required by the range. It communicates with connected electronic and electrical components so selected cooking functions can be carried out according to the range's programmed control logic.
Heating Circuit Switching:
During oven operation, the control board manages electrical switching for supported heating circuits based on the selected cooking function. This allows the range to energize the appropriate heating components at the required stages of the cooking cycle.
Electrical Output Management:
As operating commands are processed, the control board directs electrical outputs to designated range circuits. These controlled outputs coordinate connected components and allow the electronic control system to maintain the operating sequence associated with the selected cooking function.
Replacement Guidelines:
Replacement may be recommended when electronic deterioration or circuit-board damage prevents the Whirlpool W11159621 Range Control Board from performing its intended range-control functions. Problems with operating selections, heating control, display response, or programmed oven operation may indicate that the board is no longer functioning as intended.
Common Signs of Wear:
A malfunctioning control board may be associated with:
Oven does not respond to selected functions.
Heating functions operate incorrectly.
Selected cooking temperature is not maintained.
Display or electronic controls respond intermittently.
Visible damage to the circuit board or electronic components.
Equipment Compatibility:
The Whirlpool W11159621 Range Control Board should be matched to the applicable Whirlpool range by verifying the complete range model number, control-board configuration, and manufacturer part number W11159621 against the relevant Whirlpool parts documentation before purchase. Whirlpool’s parts system uses the complete appliance model number to identify applicable parts.
Technical Specifications:
Brand: Whirlpool
Part Number: W11159621
Product Type: Control Board
Application: Range
