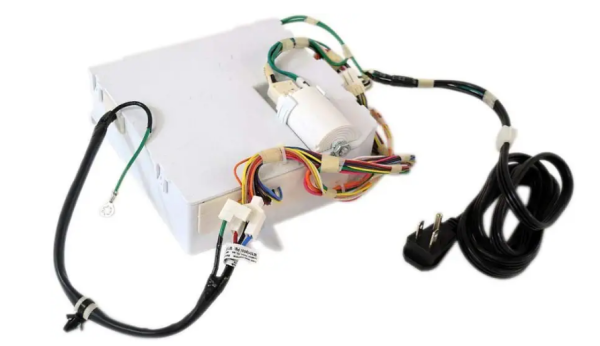

The Whirlpool W11131873 Power Control Board responsible for controlling the electrical operations of the refrigerator. It operates by regulating the current supply to the compressor, fan motors and defrosting system of the refrigerator. It help in maintaining communication within the components of the board to avoid system breakdowns. Proper voltage regulation and management of power supply is essential in the proper functioning of the refrigerator, enhancing the performance and durability.
As part of the refrigerator's electronic control system, the WHIRLPOOL W11131873 Refrigerator Power Control Board manages electrical power supplied to designated cooling components. It serves as a board-level control component within the refrigerator's cooling system.
Power Switching Control:
Electronic switching within the board controls electrical paths connected to designated refrigerator components. These switching functions allow power to be supplied to connected components according to the refrigerator's control requirements.
Refrigerator Cooling Cycle:
The board supports coordinated operation of the refrigerator's cooling components by controlling when their electrical operation is enabled. This allows components involved in the cooling cycle to operate as part of the refrigerator's temperature-control system.
Replacement Guidelines:
Replacement may be appropriate when the W11131873 is damaged or no longer provides the intended electrical control for the refrigerator's connected cooling components. A correctly specified replacement restores the power-control function required by the applicable appliance.
Common Failure Symptoms:
Refrigerator not cooling properly
Compressor not running
Cooling becoming inconsistent
Freezer not maintaining the expected temperature
Refrigerator operation becoming erratic
Equipment Compatibility:
The Whirlpool W11131873 Refrigerator Power Control Board is listed for use with compatible Whirlpool refrigerator models, The complete refrigerator model number should be matched with part number W11131873 before purchase to confirm the intended application and compatibility.
What maintenance is required for the Whirlpool W11131873 Power Control Board?
Inspect connections for loose wires or corrosion and ensure proper seating of all plugs. Check for signs of moisture or residue near the board. Test refrigerator functions periodically to confirm the board communicates correctly with all components.
What are common issues with the Whirlpool W11131873 Power Control Board?
Refrigerator not powering on.
Temperature controls unresponsive.
Compressor failing to start.
Defrost cycle not initiating.
What is the difference between a power control board and a refrigerator's main control board?
A power control board is focused on supplying and switching power for specific components, while a main control board can manage a broader range of refrigerator functions.
Does the power control board control the compressor directly?
It provides the electrical switching that controls when the connected compressor circuit receives power. The compressor itself performs the refrigeration work.
Why can one refrigerator board be connected to several components?
A single power control board can contain separate electrical paths for different connected components, allowing their operation to be controlled from one board.
What happens when a cooling component does not receive the required electrical power?
The affected component may fail to operate, which can reduce or interrupt the refrigerator's cooling performance.
Is the W11131873 a mechanical or electronic refrigerator part?
The W11131873 is an electronic control component that uses electrical circuitry and switching to manage connected refrigerator components.
Installation Steps
Step1: Unplug the refrigerator to avoid electrical hazards.
Step2: Remove the back or control panel to access the board.
Step3: Carefully disconnect all wiring harnesses and mounting screws.
Step4: Install the new control board and reconnect wires securely.
Step5: Fasten screws and ensure the board is firmly seated.
Step6: Plug in the fridge and test all functions for proper operation.
