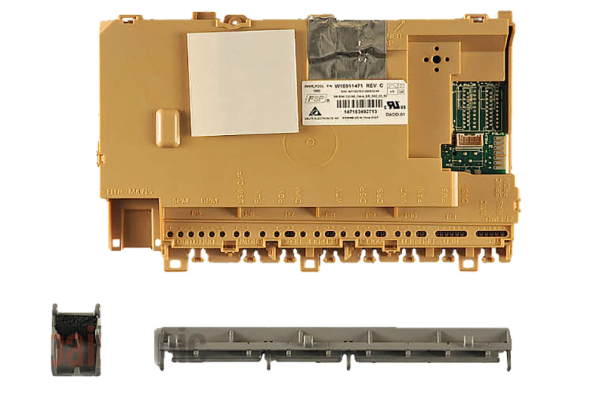

The Whirlpool W11120155 electronic control board is used for the proper functioning of the dishwasher. This controls the wash cycles, temperature, and drying time through the interpretation of the commands and the signals received from the sensors. Operates through the use of signals from different sensors to control water flow, heat, and the duration of the cycle. This board regulates the time for the usage of water and power to minimize wastage.
What maintenance is required for the Whirlpool W11120155 Electronic Control Board?
Keep the control board area clean and dry, wiping away any moisture or debris. Ensure all wiring connectors are seated firmly and not corroded. Test the dishwasher cycles after cleaning to confirm the board responds correctly to commands.
What are common issues with the Whirlpool W11120155 Electronic Control Board?
Dishwasher does not start or respond.
Cycles stop unexpectedly or reset.
Buttons or touch controls do not register input.
Error codes appear on the display.
Installation Steps
Step1: Unplug the dishwasher to prevent electrical shock.
Step2: Remove the front kick panel and locate the control board.
Step3: Disconnect all wiring harnesses from the old board.
Step4: Install the new control board, reconnect wires securely.
Step5: Replace the kick panel, restore power, and run a short cycle to verify function.
