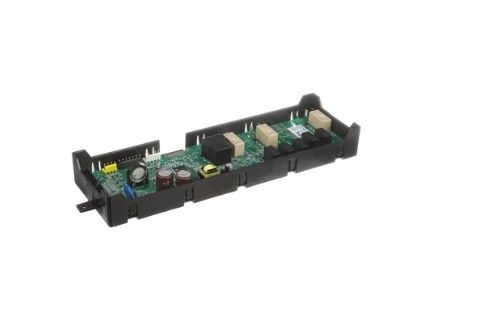

The Whirlpool W11100513 is a genuine replacement electronic control board intended exclusively for Whirlpool ranges and ovens; this may also be compatible with KitchenAid versions. This essential part serves as the appliance's nervous system, controlling a number of features like temperature control, cooking modes, and display activities. The cause of inconsistent oven temperatures, broken buttons, or even an entire appliance shutdown could be a malfunctioning control board. By changing it out for the W11100513 you can be confident that your oven or range will operate and function as it did before. You can bake, broil, and roast with confidence once more and enjoy tasty, evenly cooked foods by regaining control over your cooking techniques.
What maintenance is required for the Whirlpool W11100513 Electronic Control Board?
Keep the area around the board dry and free of debris. Ensure all wiring connections are fully seated. Test multiple functions to confirm accurate response. Avoid pressing buttons excessively and verify display or indicators operate correctly after service.
What are common issues with the Whirlpool W11100513 Electronic Control Board?
Selected functions not activating.
Timers or settings ignored.
Cycles starting or stopping randomly.
Controls not responding consistently.
Installation Steps
Step1: Turn off range power at the breaker before starting.
Step2: Remove the rear panel to access the control board area.
Step3: Disconnect all wiring connectors from the existing board.
Step4: Unscrew mounting fasteners and remove the old board.
Step5: Install the new board and reconnect wiring securely.
Step6: Reattach the panel and restore power to test operation.
