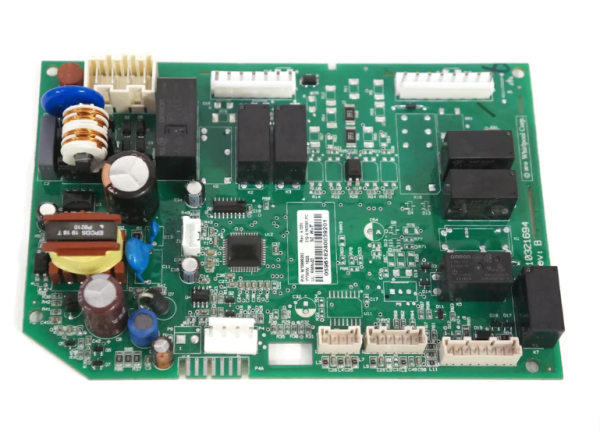

main product photo

Whirlpool W11034363 Ice Machine Main Control Board

Be the first to review this product
Special Price $236.16 Regular Price $303.72
In stock
Available Quantity:   188
SKU
W11034363

Product Description

The Whirlpool W11034363 Ice Machine Main Control Board is used to control the ice-making process of the refrigerator. Regulates the motor, water inlet valve, and heater which are crucial in the formation and harvesting of ice, and works by controlling electrical signals that switch on the several components of the ice machine and ensuring that they are working effectively and in harmony, the ice maker breaking down or constantly running out of ice and this will provide longevity efficiency and usage for ice maker.
Add to Wish List
Lights & Lamps,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11034363_whirlpool_hnkparts.png

This Part Fits the Following Models (95)

KitchenAid Freestanding Icemaker KUIX535HPS00 KUIX535HPS00 KitchenAid KUIX535HPS01 Freestanding Ice Maker KitchenAid KUIX335HPS01 Freestanding Ice Maker KitchenAid KUIX535HBS01 Freestanding Ice Maker KitchenAid KUIX535HPA01 Freestanding Ice Maker KitchenAid Ice Maker KUIX305EWH0 KUIX305EWH0 KitchenAid Ice Maker KUIX505ESS0 KUIX505ESS0 KitchenAid Freestanding Ice Maker KUIC15POZP2 KUIC15POZP2 KitchenAid Freestanding Ice Maker KUID308ESS2 KUID308ESS2 KitchenAid Ice Cube Maker KUIC15NHZS0 KUIC15NHZS0 KitchenAid Ice Cube Maker KUIC15PHZS0 KUIC15PHZS0 KitchenAid Ice Cube Maker KUIC15POZP0 KUIC15POZP0 KitchenAid Ice Cube Maker KUIC18NNZS0 KUIC18NNZS0 KitchenAid Ice Cube Maker KUIC18PNZS0 KUIC18PNZS0 KitchenAid Ice Cube Maker KUIO18NNZS0 KUIO18NNZS0
Showing 1-15 of 95
Manufacturer Name: WHIRLPOOL
Product Number: W11034363
OEM Part Number: W11034363
Product Description: Cntrl-Elec+Core (Icemaker)

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool W11034363 Ice Machine Main Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11034363 Main Control Board?

Keep the ice machine control board clean, dry, and free from dust or moisture to prevent electrical faults. Regularly inspect wiring connections for corrosion, looseness, or damage and secure them as needed. Proper grounding and stable power supply are essential to avoid voltage-related issues.

What are common issues with the Whirlpool W11034363 Main Control Board?

  • Failure to power on or intermittent shutdowns.
  • Ice machine not initiating or completing cycles.
  • Erratic or unresponsive control signals.
  • Communication errors with sensors or other components.
  • Burnt components, damaged traces, or electrical shorts.

Installation Steps

Step1: Disconnect the power of ice machine supply to avoid electric shock.

Step2: Remove the ice machine’s access panel using a screwdriver.

Step3: Locate and disconnect wires from the old control board.

Step4: Unscrew and remove the faulty board.

Step5: Mount the new board and secure with screws.

Step6: Reconnect wiring exactly as before.

Step7: Reattach the panel and restore power. Test operation.
