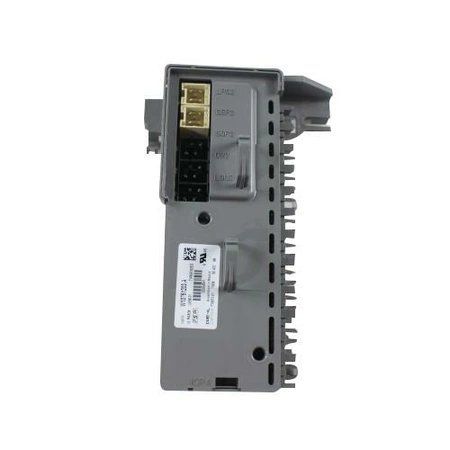

The Whirlpool W10864049 is the processor of your Whirlpool washing machine. This electronic control board serves as the central command center, interpreting user input, turning it into signals, and commanding individual washing machine components to carry out their assigned functions during a wash cycle.Assume you press the "Normal" cycle button. The control board receives this signal and determines the appropriate water level, spin speed, and agitation settings for a standard wash. It then communicates with components such as the water inlet valve, drain pump, and motor, managing their operation to complete the desired cycle. The board also monitors sensors during the wash cycle, such as water temperature and pressure sensors, and adjusts settings as needed to enhance cleaning efficiency.
Step 1: The washing machine is disconnected from the electrical outlet and the water supply is shut off.
Step 2: A Phillips head screwdriver is utilized to take out the screws situated on the rear side of the washer. After all screws have been extracted, the top panel is carefully removed.
Step 3: The electronic control board located within the washer is identified and the wiring harness is detached by gently pulling it free.
Step 4: A socket or wrench set is employed to take off the screws securing the control board.
Step 5: The old control board is placed to the side and the new one is installed in its place.
Step 6: The wiring harness is reattached to the new control board and it is fastened with the screws that were previously taken out.
Step 7: The top panel is reinstalled and secured with the screws.
Step 8: The washer is reconnected to the electrical outlet and the water supply is turned back on.
Your Whirlpool washer is now prepared for operation with the new electronic control board!
Please remember, these guidelines are served as general assistance and should always be used alongside the manufacturer's manual when available.
