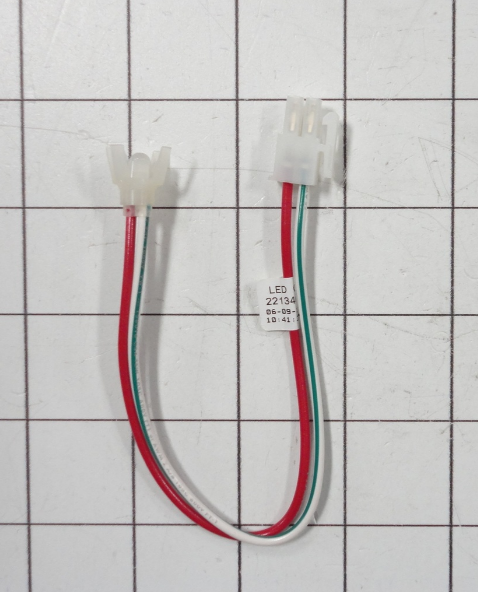

Whirlpool W10853646 Refrigerator Indicator Light Wire Harness

Special Price $55.49 Regular Price $95.20
In stock
Available Quantity:   3
SKU
W10853646

Product Description

The Whirlpool W10853646 is an updated indicator light wire harness tailored for certain Whirlpool refrigerator models. This essential component serves as an interface between the indicator lights on the refrigerator's control panel and the main circuit board. It's a wire bundle that sends electrical impulses to the lights, telling them whether to turn on or off.These lights provide visual indicators to keep you informed about the status of your refrigerator's operation.For example, they may show optimal temperature settings, notify you to an open door, or indicate dispenser performance.Without a correctly functioning wire harness, your refrigerator's indicator lights may fail, causing you to wonder about its performance.A faulty harness might cause the lights to flicker, stay on continuously, or possibly refuse to illuminate at all.

Wire,
Manufacturer
✓ This Product Replaces: 2213462

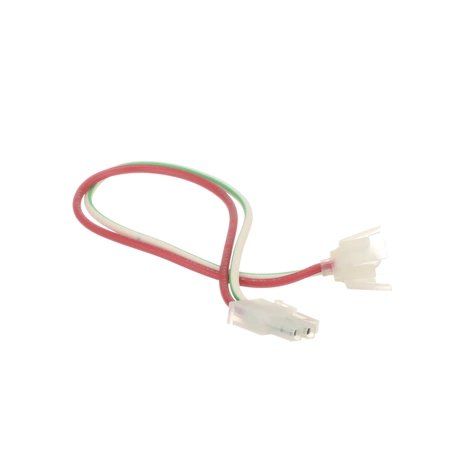

https://www.hnkparts.com/media/catalog/product/w/1/w10853646-55065.jpg

This Part Fits the Following Models (677)

Maytag MSF25C2EXS00 Refrigerator Maytag MSF25C2EXB00 Refrigerator Maytag MSF22C2EXB00 Refrigerator Maytag MSF22C2EXS00 Refrigerator Maytag MSF22C2EXW00 Refrigerator Maytag MSD2242VES03 Refrigerator Maytag MSD2550VEU00 Refrigerator Maytag MSD2542VEB00 Refrigerator Maytag MSD2542VES00 Refrigerator Maytag MSD2542VEU00 Refrigerator Maytag MSD2542VEW00 Refrigerator Maytag MSD2550VEW00 Refrigerator Maytag MSD2572VEU01 Refrigerator Maytag MSD2573VES04 Refrigerator Maytag MSD2573VEB02 Refrigerator
Showing 1-15 of 677
Manufacturer Name: WHIRLPOOL
Product Number: W10853646
OEM Part Number: W10853646
Product Description: Harns-Wire

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Whirlpool W10853646 Refrigerator Indicator Light Wire Harness
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The power supply to all kitchen appliances, which includes the Whirlpool washer and dryer, should be removed. This action will assist in avoiding any harm to the electronic components during repair work. If the area is unfamiliar, advice should be sought from a licensed electrician to confirm that the appropriate safety measures are followed.

Step 2: The wiring harness for both the washer and dryer should be identified. This can be found at the rear of the machines and/or at the back of the control panel.

Step 3: The existing wiring harness should be disconnected from the terminals.

Step 4: The new Whirlpool W10853646 HARNS-WIRE should be obtained and connected to the designated terminals. The user manual should be consulted to verify that the wiring is correctly linked.

Step 5: The washer and dryer should be reconnected to their respective electrical outlets.

Step 6: A cycle should be initiated to verify the connections. It should be confirmed that the washer or dryer operates correctly before the area is vacated.

Step 7: Once it has been confirmed that the connection is secure, the workspace should be tidied up.

Please remember that these instructions serve as general guidance and should always be used alongside the manufacturer's manual, if available.
