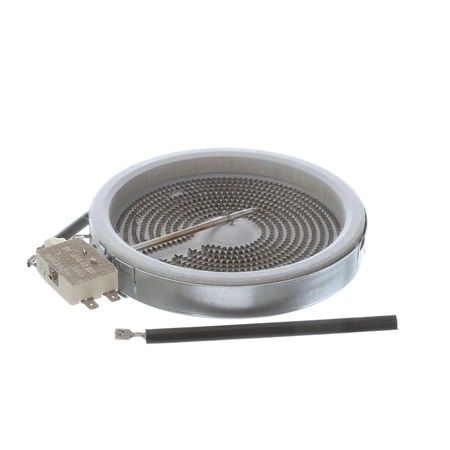

Whirlpool W10823704 Range Radiant Surface Element 6"

Special Price $82.56 Regular Price $122.38
In stock
Available Quantity:   7
SKU
W10823704

Product Description

The Whirlpool W10823704 Range Radiant Surface Element is designed to provide even and effective heating for proper cooking. It works by passing an electric current through a coil located below the glass surface, which in turn distributes heat uniformly to cookware. It takes a short time to heat and can maintain a steady heat for effective cooking. This feature increases the cooking productivity, and offers the appliance’s steady work in different cooking processes.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w10823704-80288.jpg

This Part Fits the Following Models (588)

Hardwick H3657XRA Electric Range Hardwick H3657XRW Electric Range Hardwick H3657XUW Electric Range Hardwick H3657XUA Electric Range Hardwick H3878XRA Electric Range Hardwick H3878XRW Electric Range Hardwick EPG9-77A589GF Electric Range Hardwick EPG9-77W589GF Electric Range Hardwick EG9-71A579W Electric Range Hardwick EG9-71W579W Electric Range Maytag X8670RV Cooktop Maytag MEC5536BAS Cooktop Maytag MEC5430BDW Cooktop Maytag MEC5536BAB Cooktop Maytag MEC5536BAW Cooktop
Showing 1-15 of 588
Manufacturer Name: WHIRLPOOL
Product Number: W10823704
OEM Part Number: W10823704
Product Description: Elmnt-Surf

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Whirlpool W10823704 Range Radiant Surface Element 6"
Your Rating
Customer Questions
What maintenance is required for the Whirlpool W10823704 Radiant Surface Element?

Regularly clean the range surface element to remove spills and debris, ensuring even heating. Inspect for signs of wear or damage before use. Avoid using harsh chemicals and keep the area dry to prevent electrical hazards and maintain safe operation.

What are common issues with the Whirlpool W10823704 Radiant Surface Element?

  • Element not heating or heating unevenly.
  • Flickering or inconsistent heat output.
  • Surface discoloration or burn marks.
  • Electrical short or tripping circuit breakers.
  • Loose connections causing intermittent operation.

Installation Steps

Step1: Turn off range power at breaker and allow cooktop to cool fully.

Step2: Lift glass cooktop carefully after removing securing screws underneath edge.

Step3: Disconnect faulty radiant element terminals and note wire positions.

Step4: Position new element into bracket and reconnect terminals securely.

Step5: Reassemble cooktop and tighten all mounting screws evenly.

Step6: Restore power and test burner on low setting first.

Step7: Use insulated gloves to avoid burns and avoid electrical shock risk.
