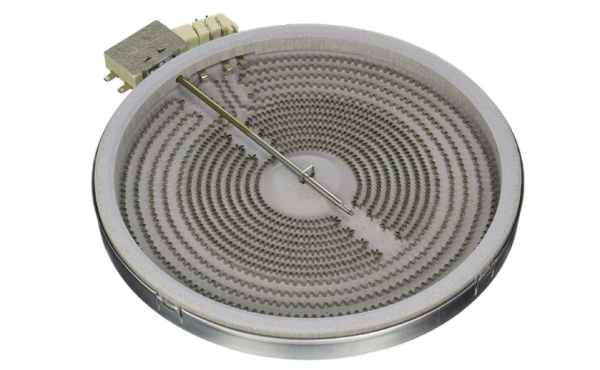

Whirlpool W10823692 Range Dual Radiant Surface Element

Special Price $77.36 Regular Price $115.16
In stock
Available Quantity:   9
SKU
W10823692

Product Description

The Whirlpool W10823692 Range Dual Radiant Surface Element is designed to distribute heat evenly across the cooking surface. It has two bright heating rods that depending on the size of the cookware to ensure fast and even heat distribution. It uses infrared heat emission which helps in heating pots and pans to reduce the time taken to cook food. The advantage of this dual-element system is better heat control, energy efficiency, and suitability for different pot sizes, which makes this design suitable for home use.
Manufacturer
✓ This Product Replaces: 8272563, 8523693, 74008897, 9756697, 4453909, 74011551, 7406P403-60, WP4453909, WP74011551, WP4453908
https://www.hnkparts.com/media/catalog/product/w/1/w10823692_whirlpool_hnkparts.png

This Part Fits the Following Models (774)

KitchenAid Electric Counter Unit Cooktop KECC562GBTW KECC562GBTW KitchenAid Electric Counter Unit Cooktop KECC563HBT0 KECC563HBT0 KitchenAid Electric Counter Unit Cooktop KECC563HWH0 KECC563HWH0 KitchenAid KECC502GBL05 Cooktop KitchenAid KECC502GAL0 Cooktop KitchenAid KECC502GAL1 Cooktop KitchenAid KECC502GAL2 Cooktop KitchenAid KECC502GBL0 Cooktop KitchenAid Cooktop KECC562GBL06 KECC562GBL06 KitchenAid KECD865HWH1 Cooktop KitchenAid KECD865HWH2 Cooktop KitchenAid KECD865HWH3 Cooktop KitchenAid KECD865HWH4 Cooktop KitchenAid KECC568GAL0 Cooktop KitchenAid KECC568GAL1 Cooktop
Showing 1-15 of 774
Manufacturer Name: WHIRLPOOL
Product Number: W10823692
OEM Part Number: W10823692
Product Description: Elmnt-Surf

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Whirlpool W10823692 Range Dual Radiant Surface Element
Your Rating
Customer Questions
What maintenance is required for the Whirlpool W10823692 Dual Radiant Surface Element?

Keep the range surface element clean by wiping spills promptly after cooling to avoid buildup. Avoid using abrasive cleaners that can damage the radiant surface. Ensure proper electrical connections and inspect for cracks or discoloration to maintain better, efficient heating performance.

What are common issues with the Whirlpool W10823692 Dual Radiant Surface Element?

  • Range element not heating or inconsistent heat output.
  • Uneven heating across inner and outer rings.
  • Burn marks or discoloration on the surface.
  • Electrical connection failures causing intermittent operation.

Installation Steps

Step1: Disconnect range power at breaker to prevent electric shock carefully.

Step2: Remove cooktop glass or lift surface to access faulty element.

Step3: Disconnect wiring harness and note terminal positions.

Step4: Remove mounting screws securing old radiant element.

Step5: Install new element aligning brackets and reconnect wires securely.

Step6: Reassemble cooktop and restore power, then test all heat settings.
