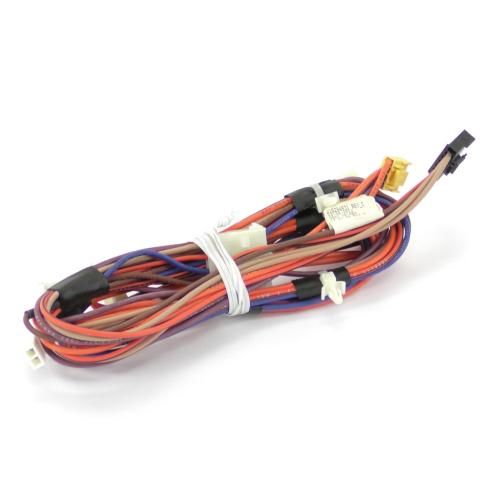

Whirlpool W10284931 Wall Oven Wire Harness

Special Price $67.53 Regular Price $76.95
In stock
Available Quantity:   3
SKU
W10284931

Product Description

The Whirlpool W10284931 Wall Oven Wire Harness provides power and control signals between the main control board and the interior components. It is installed inside the wall oven cabinet and is attached to the internal frame with clips or fasteners and ends with special connectors that plug into subsystem circuits. The harness is used to bundle a number of conductors together in a shielded bundle to ensure continuity of signals to facilitate coordinated power delivery required to regulate the heating process and standard cooking operation cycles.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w10284931-22257.jpg

This Part Fits the Following Models (143)

Maytag MEW7627AB00 Wall Oven Maytag MEW7627AB01 Wall Oven Maytag MEW7627AB02 Wall Oven Maytag MEW7627AS00 Wall Oven Maytag MEW7627AS01 Wall Oven Maytag MEW7627AS02 Wall Oven Maytag MEW7627AW00 Wall Oven Maytag MEW7627AW01 Wall Oven Maytag MEW9630DS01 Wall Oven Maytag MEW9630DS02 Wall Oven Maytag MEW9630FB00 Wall Oven Maytag MEW9630FB01 Wall Oven Maytag MEW9630FW00 Wall Oven Maytag MEW9630FW01 Wall Oven Maytag MEW9630FZ01 Wall Oven
Showing 1-15 of 143
HARNESS SIGNAL-GOOD/BETT MRC2
