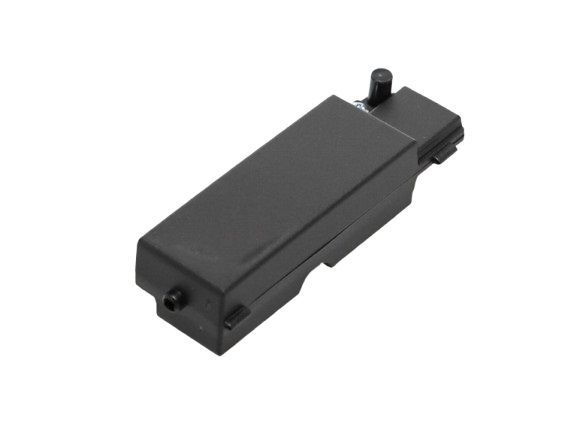

The Whirlpool W10235661 Range Control Motor controls movement in the operational system of the appliance. It operates by getting electrical signals on the control board to change settings, timers or switches when necessary during cooking cycles. It is located in the range and is firmly attached to the internal wiring and assembly, combined with the timer and switch mechanisms, so that it can coordinate its operation and properly respond to user inputs during the heating and timing modes.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The appliance is disconnected from its electrical supply.
Step 2: The downdraft motor is extracted from the appliance by loosening the screws and nuts that secure it.
Step 3: The wiring harness linked to the motor is detached.
Step 4: The new W10235661 Whirlpool motor control is positioned, ensuring that all wiring connections mimic those of the previous motor control.
Step 5: The new motor control is fastened using the screws and nuts that were taken off earlier.
Step 6: The appliance is reconnected to the power source and the power is activated to verify the motor control is functioning correctly.
Step 7: The operation of the motor control is evaluated to confirm it is working as intended.
It is important to note that these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if it is accessible.
