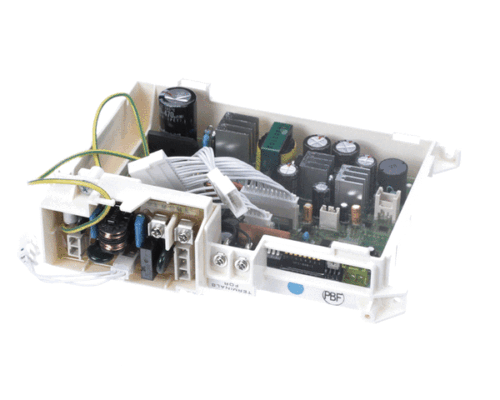

Rinnai U245-1200-G-HX02 Water Heater Compatible PCB 2532WC W/MC91 is a replacement circuit board that can enhance the functionality of the water heater system. This PCB is mainly responsible for ignition, temperature control and safety aspects, making the operation smooth and effective. It functions by receiving signals from several sensors and then controlling the flow of gas and the operations of the burners to regulate the water temperature.
As part of the water heater control system, the Rinnai U245-1200-G-HX02 Water Heater PCB 2532WC MC91 serves as the primary electronic control module for select Rinnai tankless water heaters using the 2532WC control platform and compatible with the MC91 controller. It processes operating signals from connected sensors and system components to coordinate electronic functions associated with ignition, burner operation, temperature-related inputs, and other stages of the water heating cycle.
Temperature Regulation Interface:
Temperature-related inputs are processed through the control board's electronic control system as part of the programmed heating response. Information from connected temperature-sensing components provides operating input that the board uses to coordinate the water heater's response as temperature conditions change. This electronic processing connects temperature information with the control logic governing the heating operation.
Operating Sequence:
During the water heating cycle, the control board coordinates electrical communication between connected components as the appliance progresses from a demand for hot water through the heating sequence. It manages transitions involving ignition, burner operation, temperature monitoring, combustion control, and protective system responses according to programmed control logic. This coordination allows the connected components to operate in their required sequence throughout the heating process.
Replacement Guidelines:
Replacement should be considered when the Rinnai U245-1200-G-HX02 Water Heater PCB no longer coordinates the water heater's electronic functions correctly. Incomplete ignition sequences, inconsistent temperature control, unexpected heating interruptions, or intermittent electronic operation can indicate a control-board-related issue. Before purchasing, verify the Rinnai brand, part number, control platform, controller compatibility, and applicable equipment documentation.
Common Failure Symptoms:
Water heater fails to complete the ignition sequence.
Hot water temperature becomes inconsistent.
Appliance does not respond correctly to operating commands.
Heating cycles stop unexpectedly.
Error codes related to electronic control functions appear.
Intermittent operation occurs during water heating cycles.
Equipment Compatibility:
The Rinnai U245-1200-G-HX02 Water Heater PCB 2532WC MC91 is designed for select Rinnai tankless water heaters equipped with the 2532WC control platform and compatible with the MC91 controller. Always verify the appliance model number, control platform, and existing part number before purchasing to ensure compatibility with the intended water heater.
What type of component is the Rinnai U245-1200-G-HX02?
The Rinnai U245-1200-G-HX02 is a printed circuit board that serves as the primary electronic control module in the specified tankless water heater application.
How does a water heater control board differ from a remote controller?
A water heater control board manages internal electronic functions and coordinates connected components, while a remote controller provides the user interface for available operating settings.
What is the 2532WC control platform associated with this Rinnai PCB?
The 2532WC control platform identifies the electronic control configuration associated with the U245-1200-G-HX02 PCB. This platform information helps distinguish the board from other control configurations used in tankless water heater systems.
What role does the MC91 controller have in identifying this PCB?
The MC91 controller is the compatible controller identified for this PCB, providing an additional component reference when confirming the applicable electronic control configuration.
What functions can a tankless water heater control board coordinate?
A tankless water heater control board can coordinate electronic functions associated with the appliance's operating sequence, including inputs from connected components and control functions related to heating operation, when supported by the specific control system.
