main product photo

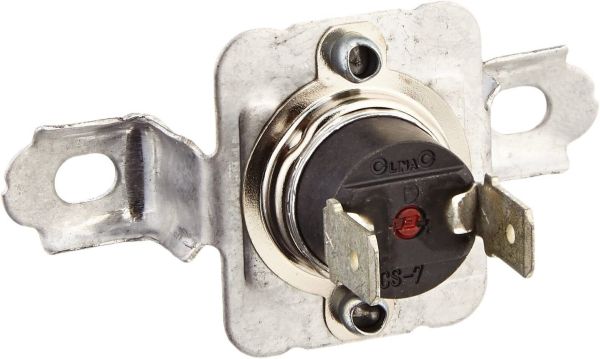

Speed Queen D518649 Dryer Thermal Fuse Assembly

Be the first to review this product
$17.82
In stock
Available Quantity:   238
SKU
D518649

Product Description

The Speed Queen D518649 Thermal Fuse Assembly is a counter ratio thermal fuse assembly that is designed to protect the motor from overload and overheating. The assembly is composed of a thermal fuse, a thermal switch, a PDF, and a moment of electric shock termination fuse. The thermal fuse is designed to trip the thermal switch and protect the motor if the temperature exceeds a predetermined threshold level.



Add to Wish List
Dryer Thermal Fuse, Fuse,
Manufacturer
✓ This Product Replaces: 510183, 511412, 510183, D511412, D518542
https://www.hnkparts.com/media/catalog/product/d/5/d518542_speed-queen_hnkparts.png

This Part Fits the Following Models (40)

Showing 1-15 of 40

Speed Queen Thermal Fuse Assembly D518649

The Speed Queen Dryer Thermal Fuse Assembly D518649 is essential to ensuring the effective and safe operation of your device. This thermal fuse assembly is a dependable and long-lasting solution for your needs, as it is made to avoid overheating and any damage to your machine. This heat fuse assembly is engineered to the highest levels of performance and dependability through its meticulous construction. It is constructed from high-quality, corrosion- and heat-resistant materials.

Key Features for Speed Queen Thermal Fuse Assembly D518649:

  • Prevents overheating in your appliance

  • Protects your appliance from damage

  • Made from premium materials

  • Compatible with select Speed Queen appliances



Reviews
Write Your Own Review
You're reviewing:Speed Queen D518649 Dryer Thermal Fuse Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Speed Queen D518649 Thermal Fuse Assembly ?

Inspect the thermal fuse periodically for signs of wear, overheating, or damage, especially if the dryer shows heating issues. Keep the dryer interior clean and ensure vents are unobstructed to prevent excessive heat buildup. Avoid lint accumulation around airflow paths, as restricted airflow can strain the fuse. Proper installation and secure connections help ensure accurate and safe operation.

What are common issues with the Speed Queen D518649 Thermal Fuse Assembly ?

  • Blown fuse causing no heat.
  • Dryer fails to start or stop.
  • Intermittent heating or cycling issues.
  • Overheating triggering repeated fuse failure.
  • Open circuit preventing operation.
  • Drum runs but no heat output.
  • Unexpected shutdown during cycles.

Installation Steps

Step1: Unplug dryer and shut off breaker; allow unit to cool fully to prevent shock or burns.

Step2: Remove rear or lower access panel screws and set panel aside.

Step3: Locate thermal fuse on blower housing or heater assembly and disconnect wiring harness.

Step4: Remove faulty fuse and install new unit in same orientation.

Step5: Reconnect wires securely and reassemble panel.

Step6: Restore power and run test cycle to confirm heating and airflow.
