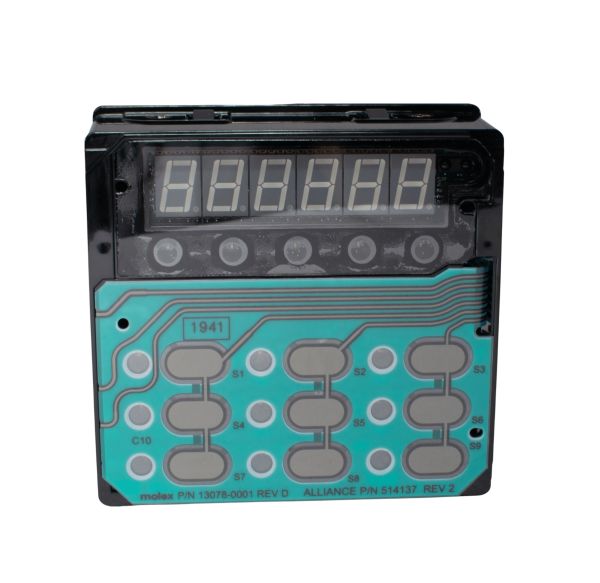

Speed Queen D515807P Dryer Green Control CMM Assembly ACA H7S

The Speed Queen D515807P Dryer Green Control CMM Assembly ACA H7S is the central electronic control module that regulates appliance operational logic by processing input commands and controlling communication between major subsystems. It is positioned within the control housing‍ of‍ the‍ appliance, where it interfaces with the user interface panel, motor control circuits, sensors, and wiring harness distribution network. The assembly integrates through multipin connectors, circuit board pathways, and secured mounting points that ensure stable electrical signal transfer and system synchronization. This configuration supports cycle selection, process timing and coordinated control of wash operations, ensuring consistent performance during use.
