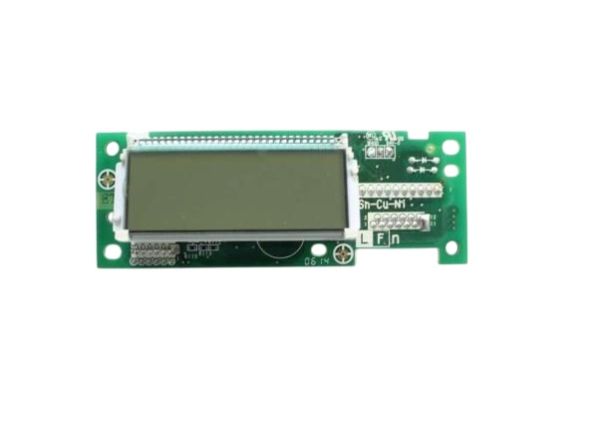

Sharp DPWBFB172MRU0 Microwave Oven Drawer Control Board

Be the first to review this product
Special Price $87.10 Regular Price $103.70
Out of stock
Available Quantity:   0
SKU
DPWBFB172MRU0

Product Description

The Sharp DPWBFB172MRU0 Microwave Drawer Control Board is an electrical board that manages the electricity to be sent to the oven to run the cooking features, timers, and user interfaces. It functions by accepting the control panel and sensor commands to control the power supply to internal components. It is installed in the control cavity and wired to the wiring harness and is compatible with other Sharp oven models. This board provides proper signal processing, system coordination and support in ensuring that the oven is operated stably in normal operation.
Add to Wish List
Stove & Oven Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/p/dpwbfb172mru0-27010.jpg

This Part Fits the Following Models (4)

Write Your Own Review
You're reviewing:Sharp DPWBFB172MRU0 Microwave Oven Drawer Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Sharp DPWBFB172MRU0 Drawer Control Board?

Ensure all connectors are fully seated and free of dust. Confirm buttons respond immediately. Verify the drawer opens and closes accurately, and that microwave functions operate correctly during repeated cycles without misreads or skipped commands.

What are common issues with the Sharp DPWBFB172MRU0 Drawer Control Board?

  • Buttons not responding.
  • Drawer opening delayed.
  • Display panel remaining blank.
  • Drawer not opening or closing properly.

Installation Steps

Step1: Disconnect the microwave power supply at the breaker before installation.

Step2: Remove the drawer unit front panel to access internal controls.

Step3: Carefully unplug wiring connectors from the existing control board.

Step4: Unscrew and detach the old board from its mounting position.

Step5: Install the new control board and secure it firmly in place.

Step6: Reconnect wiring, reassemble the panel, restore power, and test operation.
