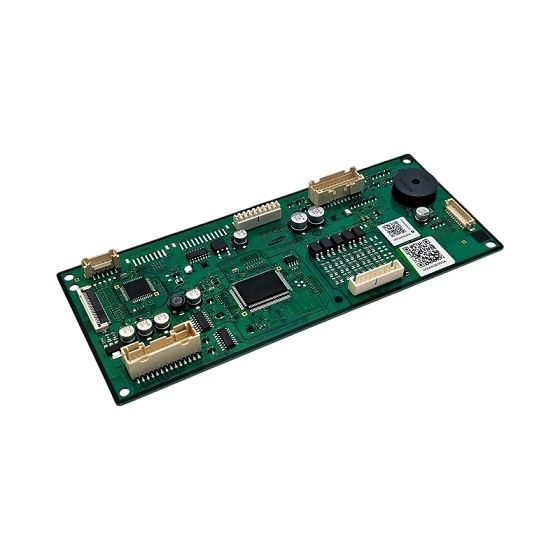

main product photo

Samsung DG94-06060A Microwave Oven EEPROM PCB Assembly 2 NE/NX9100D

Be the first to review this product
Special Price $192.65 Regular Price $249.95
In stock
Available Quantity:   2
SKU
DG94-06060A

Product Description

The Samsung DG94-06060A Microwave Oven EEPROM PCB Assembly 2 NE/NX9100D processes the operating instructions and manages communication between the appliance control panel and internal components. It fits inside the microwave control area, it connects with the display, keypad, sensors and electrical wiring. The PCB assembly reads selected cooking settings, controls timing sequences and coordinates power control for heating and other microwave operations. It is part of the microwaves electronic control system, managing the programmed cycles during use.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/g/dg94-06060a-50845.jpg

This Part Fits the Following Models (2)

Write Your Own Review
You're reviewing:Samsung DG94-06060A Microwave Oven EEPROM PCB Assembly 2 NE/NX9100D
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DG94-06060A PCB Assembly?

Regularly inspect the PCB assembly for signs of corrosion, loose connections, or burnt components. Ensure the microwave is unplugged during checks. Proper maintenance prevents faulty components and enhances performance accuracy. Avoid moisture exposure and handle with care to avoid electrical hazards.

What are common issues with the Samsung DG94-06060A PCB Assembly?

  • Erratic microwave operation or failure to start.
  • Display or control panel malfunctions.
  • Failure to retain programmed settings.
  • Overheating or component burnout.

Installation Steps

Step1: Turn off the unit at the circuit breaker and verify power is disconnected before servicing.

Step2: Remove the access panel to reach the existing PCB assembly.

Step3: Label and disconnect each wire harness, then remove the mounting screws securing the old PCB.

Step4: Install the new PCB assembly, reconnect all harnesses to their original positions, and secure it firmly.

Step5: Reinstall the access panel, restore power, and test the controls to confirm proper operation.
