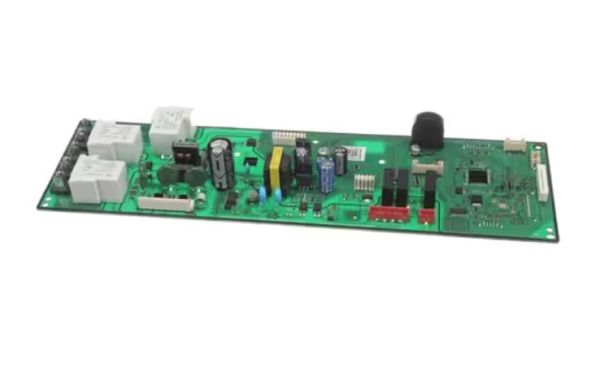

main product photo

Samsung DG94-05221A Range EEPROM PCB Assembly

Rating:
5 5 1
1 Review Add Your Review
Special Price $162.93 Regular Price $211.80
In stock
Available Quantity:   106
SKU
DG94-05221A

Product Description

The Samsung DG94-05221A Range EEPROM PCB Assembly is an electronic memory board that controls configuration settings and operational parameters of the appliance. It is used to store essential system information like calibration values, error logs, and control settings even when the appliance is not running. It operates by memory circuits that connect to the main control board to provide the stored information at the time of startup and operation. This unit is placed in the internal control area of the range when it is being manufactured or during service replacement.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/g/dg94-05221a.jpg

This Part Fits the Following Models (1)

Write Your Own Review
You're reviewing:Samsung DG94-05221A Range EEPROM PCB Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DG94-05221A EEPROM PCB Assembly?

Inspect the EEPROM PCB for secure electrical connections and absence of corrosion. Check that all sensor inputs respond correctly. Keep the assembly free from moisture and dust, and ensure the PCB is firmly mounted to prevent signal disruptions.

What are common issues with the Samsung DG94-05221A EEPROM PCB Assembly?

  • Range not powering on.
  • Burner settings not retained.
  • Display errors or freezes.
  • Cooking cycles not executing correctly.

Installation Steps

Step1: Unplug the range and ensure no power is connected.

Step2: Remove the back panel to access the PCB.

Step3: Carefully disconnect all wiring connectors from the old PCB.

Step4: Unscrew and remove the old PCB assembly.

Step5: Install the new PCB, secure with screws, and reconnect wires.

Step6: Replace the panel, plug in, and test all functions for proper operation.
