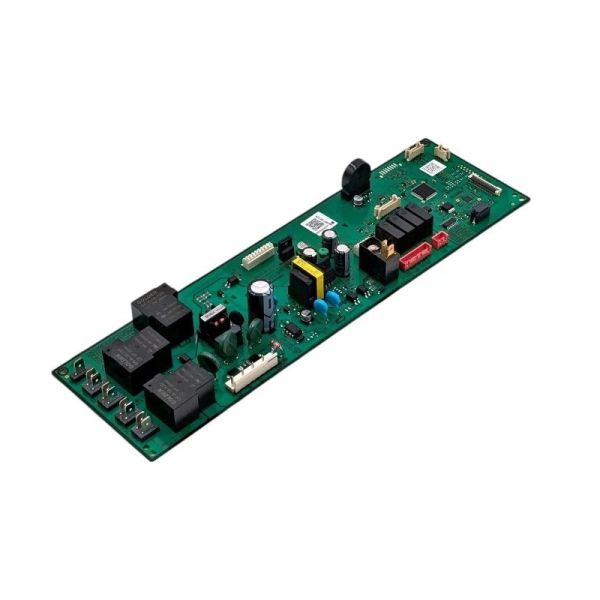

Samsung DG94-05220F Range EEPROM PCB Control Board

Be the first to review this product
Special Price $176.89 Regular Price $230.35
In stock
Available Quantity:   682
SKU
DG94-05220F

Product Description

The Samsung DG94-05220F Range EEPROM PCB Control Board is an electronic control module designed to regulate operational sequencing, memory storage and transmission between the internal systems during operation. It is installed within the appliance control where it interfaces with the user panel, heating elements, temperature sensors, ignition circuits, display module, and wiring harness connections through electrical pathways. The EEPROM PCB maintains programmed settings while coordinating appliance functions. By providing signal processing, data storage, and subsystem connectivity between interconnected components, it maintains stable range operation and consistent cooking performance during cycles.
Add to Wish List
Stove & Oven Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/g/dg94-05220f-78289.jpg

This Part Fits the Following Models (3)

Write Your Own Review
You're reviewing:Samsung DG94-05220F Range EEPROM PCB Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DG94-05220F PCB Assembly?

Check that stored settings remain unchanged after restarting the system to confirm proper memory function. Ensure connectors remain firmly seated within the control housing. Verify command selections register correctly and functions transition smoothly between operating modes during regular usage.

What are common issues with the Samsung DG94-05220F PCB Assembly?

  • Settings resetting after shutdown.
  • Display showing incorrect data.
  • Modes switching without input.
  • Commands not storing properly.

Installation Steps

Step1: Turn off range power at the breaker to avoid electrical hazard.

Step2: Remove rear control panel cover to access the PCB area.

Step3: Label and disconnect wiring harnesses from the old board.

Step4: Unscrew and remove the faulty board control board carefully.

Step5: Install new PCB and reconnect all terminals securely.

Step6: Reassemble panel restore power and test oven functions.
