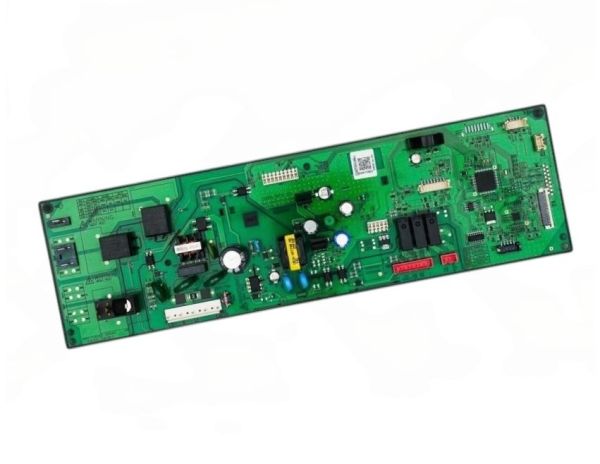

main product photo

Samsung DG94-05220B Range EEPROM PCB Assembly EEP_02 DG92-01

Rating:
5 5 1
1 Review Add Your Review
Special Price $162.98 Regular Price $208.40
In stock
Available Quantity:   262
SKU
DG94-05220B

Product Description

The Samsung DG94-05220B Range EEPROM PCB Assembly EEP_02 DG92-01 is an electronic memory board that holds and stores essential system settings and operating data in the control system of the appliance. Its purpose is to store configuration settings, calibration values, and error history to allow the appliance to remember them when it is restarted or interrupted. The system operates based on non-volatile memory circuits which connect to the main control board to provide stored information on startup and operation. This assembly is placed into the internal control compartment of the range.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Samsung DG94-05220B Range EEPROM PCB Assembly EEP_02 DG92-01
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DG94-05220B EEPROM PCB Assembly?

Keep the PCB assembly free from moisture, grease, or dust using a soft brush or cloth. Inspect all connections for stability and avoid pressing buttons harshly. Proper handling ensures accurate range functions and prevents electrical short circuits or operational failures.

What are common issues with the Samsung DG94-05220B EEPROM PCB Assembly?

  • Stored settings are changed unexpectedly.
  • Cooking inputs are not responding to commands.
  • Error codes appearing during operation.
  • Control board fails to communicate with other modules.

Installation Steps

Step1: Disconnect the range from the power source.

Step2: Remove the back panel or control console to access the PCB.

Step3: Carefully disconnect wiring from the old PCB.

Step4: Install the new PCB and reconnect all harnesses.

Step5: Secure the board with screws.

Step6: Reassemble panels.

Step7: Plug in the range and test all functions.
