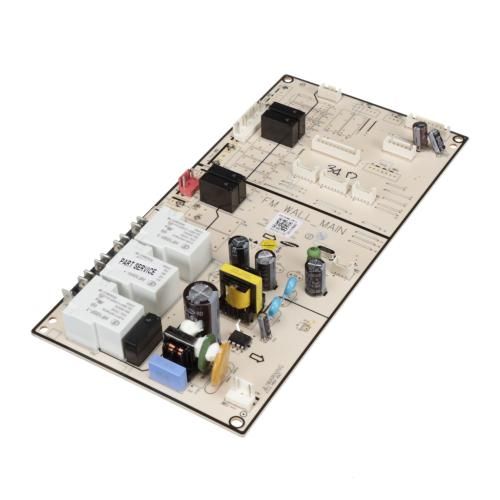

Samsung DG92-01134D Oven Main PCB Assembly

Be the first to review this product
Special Price $242.26 Regular Price $288.95
In stock
Available Quantity:   4
SKU
DG92-01134D

Product Description

The Samsung DG92-01134D Oven Main PCB Assembly controls all the circuits and the communication between different sections of the oven. Through the inputs from the user, the PCB controls the temperatures, time and other cooking modes. This assembly increases efficiency, it makes cooking activities more efficient and accurate. It has a solid and durable construction that minimizes the frequency of its maintenance and provides a seamless cooking process.
Add to Wish List
Stove & Oven Parts, PCBs,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/g/dg92-01134d-1.jpg

This Part Fits the Following Models (4)

Write Your Own Review
You're reviewing:Samsung DG92-01134D Oven Main PCB Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DG92-01134D Main PCB Assembly?

Regularly inspect the PCB assembly for signs of burnt components, loose connections, or dust buildup. Keep the oven interior dry and clean to prevent moisture damage. Ensure stable power supply to avoid voltage fluctuations. Always disconnect power before handling for safety.

What are common issues with the Samsung DG92-01134D Main PCB Assembly?

  • Oven not powering on or intermittent power failure.
  • Unresponsive control panel or display malfunction issues.
  • Inconsistent heating or incorrect temperature regulation issues.
  • Error codes due to communication failure between components.

Installation Steps

Step1: Turn off power at the Oven PCB to avoid electric shock.

Step2: Remove the oven’s back panel carefully.

Step3: Locate and disconnect wiring from the old PCB, noting positions.

Step4: Unscrew and remove the faulty board carefully.

Step5: Mount the new PCB and secure it with screws.

Step6: Reconnect all wires firmly.

Step7: Reattach the panel and restore power to test functionality.
