main product photo

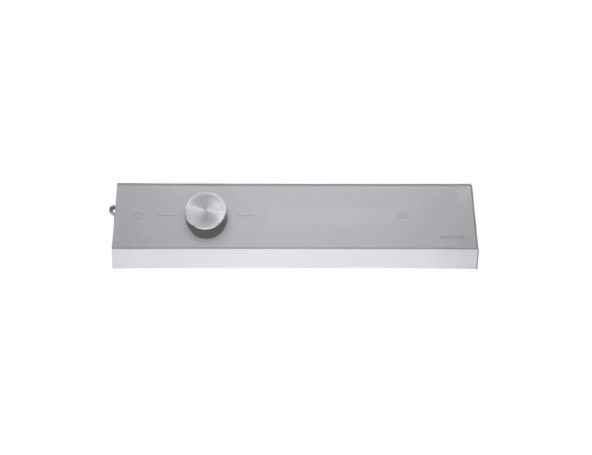

Samsung DC97-23220D Washing Machine Control Panel Module Assembly

Be the first to review this product
Special Price $311.16 Regular Price $426.95
In stock
Available Quantity:   8
SKU
DC97-23220D

Product Description

The Samsung DC97-23220D Washing Machine Control Panel Module Assembly controls the operations of washing machines, such as models WF8700B and WF53BB. This module is connected to the internal systems of the product enabling the users, to regulate the wash cycles, water temperature and spin settings.
Add to Wish List
Washing Machine Parts, Control Panels,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/c/dc97-23220d.jpg

This Part Fits the Following Models (1)

Write Your Own Review
You're reviewing:Samsung DC97-23220D Washing Machine Control Panel Module Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DC97-23220D Control Panel Module Assembly?

Gently wipe the panel with a dry microfiber cloth to maintain button clarity and responsiveness. Prevent exposure to moisture or detergent splashes. Ensure wiring connectors remain secure. Periodically test input accuracy to confirm proper signal transmission and smooth operational control.

What are common issues with the Samsung DC97-23220D Control Panel Module Assembly?

  • Touchpad registering incorrect selections.
  • Display freezing during operation.
  • Indicator lights failing.
  • Control module failing to start.

Installation Steps

Step1: Unplug the washing machine and turn off the water supply.

Step2: Remove the top cover to access the control panel module.

Step3: Disconnect wiring harnesses from the existing control assembly.

Step4: Unscrew and remove the old panel module carefully.

Step5: Install the new panel module and reconnect all wiring securely.

Step6: Reassemble the unit and test control operations.
