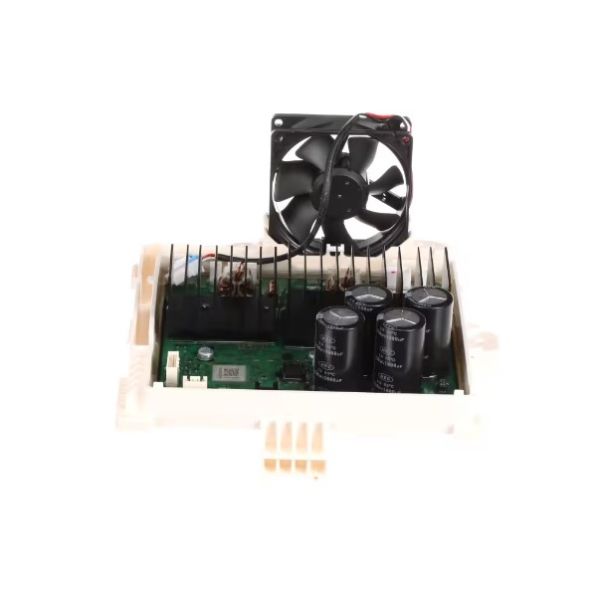

Samsung DC92-03696B Washing Machine PCB Inverter Kit Assembly 146 x 160mm 110V

Be the first to review this product
Special Price $238.88 Regular Price $293.70
In stock
Available Quantity:   7
SKU
DC92-03696B

Product Description

The Samsung DC92-03696B Washer Inverter PCB Kit Assembly ensures smooth operation of the washer as it regulates the energy consumption in every washing cycle. It does this by changing the electrical current in the house to the required voltage, and frequency to run the motor effectively.
Add to Wish List
Washing Machine Parts, Main PCBs|Main Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/c/dc92-03696b.jpg

This Part Fits the Following Models (1)

Write Your Own Review
You're reviewing:Samsung DC92-03696B Washing Machine PCB Inverter Kit Assembly 146 x 160mm 110V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DC92-03696B PCB Inverter Kit Assembly?

Keep all connectors fully seated and the PCB free from moisture or dust. Confirm all cycle commands respond immediately. Verify motor speed adjusts correctly and washing functions operate consistently during repeated cycles without interruption.

What are common issues with the Samsung DC92-03696B PCB Inverter Kit Assembly?

  • Washer failing to power on.
  • Drum not spinning or agitating correctly.
  • Error codes appearing mid-cycle.
  • Inverter overheating during operation.

Installation Steps

Step1: Unplug the washing machine before starting installation.

Step2: Remove the rear panel to access the inverter PCB compartment.

Step3: Label and disconnect all wiring and connectors carefully.

Step4: Unscrew and remove the old inverter PCB assembly.

Step5: Install the new PCB kit and reconnect all wiring securely.

Step6: Reassemble the panel and run the cycle to test the operation.
