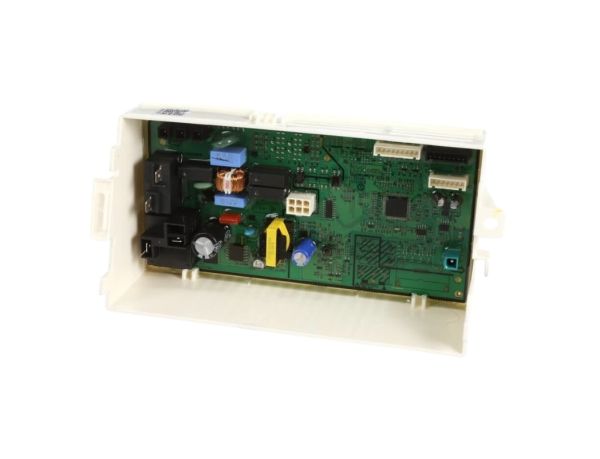

main product photo

Samsung DC92-03611B Dryer Main PCB Kit Assembly HW FCD DV540

Be the first to review this product
Special Price $168.10 Regular Price $217.95
In stock
Available Quantity:   4
SKU
DC92-03611B

Product Description

The Samsung DC92-03611B Dryer Main PCB Kit Assembly HW FCD DV540 is designed to operate and control the drying functions, including the heat regulation, the operation of the motors, and the timing of the cycle. It operates through the input of sensors and user controls, then sends the electrical signal to internal parts based on programmed logic. This PCB assembly is placed inside the control casing of the dryer and it is connected to the wiring harness. It requires proper execution of the cycles, consistency in drying, and reliability in the functioning of the appliances.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Samsung DC92-03611B Dryer Main PCB Kit Assembly HW FCD DV540
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DC92-03611B Main PCB Kit Assembly?

Inspect all electrical connectors for secure attachment and corrosion. Keep the PCB free of lint and moisture. Test dryer functions to ensure control signals are received correctly, and verify that the board is firmly mounted without flexing.

What are common issues with the Samsung DC92-03611B Main PCB Kit Assembl?

  • Dryer not starting.
  • Heating cycles are failing.
  • Control signals intermittent.
  • Display errors or incorrect indicators.

Installation Steps

Step1: Unplug the dryer to prevent electrical shock.

Step2: Remove the dryer back panel to access the PCB.

Step3: Disconnect all wire connectors from the old PCB.

Step4: Unscrew and remove the old PCB.

Step5: Mount the new PCB and reconnect wires.

Step6: Replace the back panel, plug in, and test operation.
