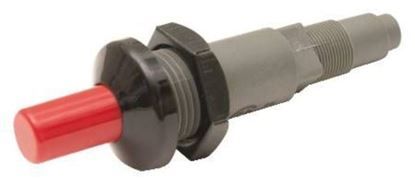

The Williams Furnace P285500 Manual Spark Igniter is designed to ignite compatible heating units in a safe and efficient manner. It uses a manual push button to ignite the pilot and hence produce the required spark for the burner to produce a flame. This igniter enhances energy efficiency because it provides a rapid and steady flame ignition without the wastage of gas.
Step 1: The gas supply is disabled and the circuit breaker for the Williams Manual Spark Ignitor (P285500) is switched off.
Step 2: The screws securing the faceplate of the manual spark ignitor are taken out, and then the faceplate is detached to reach the wiring connections.
Step 3: The wires are disconnected from the terminals of the current manual spark ignitor. It is ensured that the wires do not get mixed up during disconnection.
Step 4: With a screwdriver, the two screws that hold the manual spark ignitor in position are removed. After these are taken out, the ignitor can be lifted and set aside.
Step 5: The new manual spark ignitor is installed and the supplied screws are utilized to fasten it securely.
Step 6: The wires are attached to the terminals on the new manual spark ignitor. It is confirmed that they are connected properly.
Step 7: The faceplate is reattached and the screws are firmly tightened.
Step 8: The circuit breaker for the Williams Manual Spark Ignitor is reactivated, and the gas supply is restored.
Step 9: The manual spark ignitor is verified by powering on the appliance and checking that it ignites correctly. Should any problems arise, the manufacturer’s instructions for troubleshooting should be consulted.
Please remember that these instructions are served as general guidance and should always be used alongside the manufacturer's manual, if one is available.
